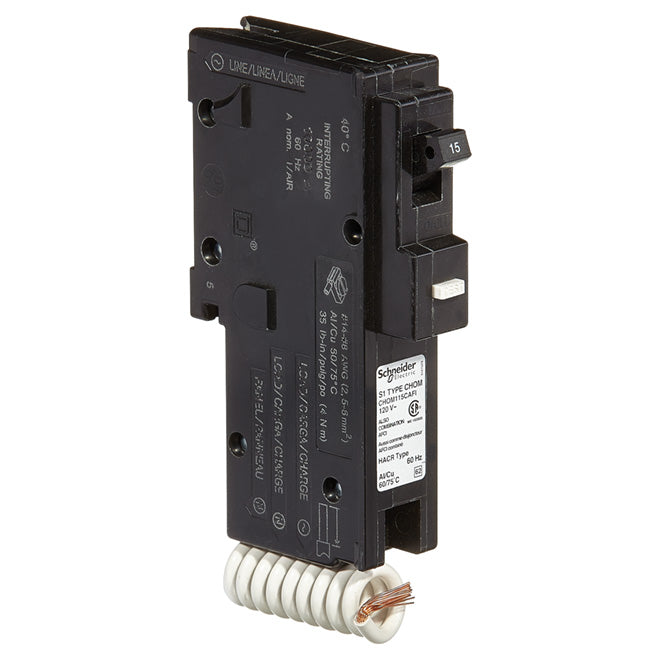

1-Pole 120 V AC CAFCI Circuit Breaker - 15 A Rated-Each

This Homeline 15 A rated CAFCI 1-pole circuit breaker features the "Time Saver" function that saves time during diagnosis by identifying the type of fault that last occurred in a circuit. This circuit breaker range is designed to detect electrical arcs. The breaker is CSA licensed for HACR-type equipment (Heating, Air Conditioning & Refrigeration) and is only compliant with Canadian Square D QO load centres. Typical applications for a single pole 15 A breaker include lighting and receptacle circuits in a home and requiring a wire size of 14-2. The breaker provides overload and short circuit protection (120 V AC).

Detects unintended arc faults, overloads and short circuitsWhite push to test buttonUses pigtail neutral for installationCompatible only with Canadian HomeLine loadcentresBuilt in time saver diagnostics feature10,000 A interrupting rating (AIR)For new construction or new wiring in the house-Width Measurement
1-in
UL Safety Listing
No
Amps(Amps)
15
Circuit Breaker Size
1 inch
Circuit Breaker Type
Combination arc fault
Circuit Breaker Voltage
120
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
15-amp
Series
CHOM
Series Name
CHOM
Surge Protection
No
Type
Combination arc fault
