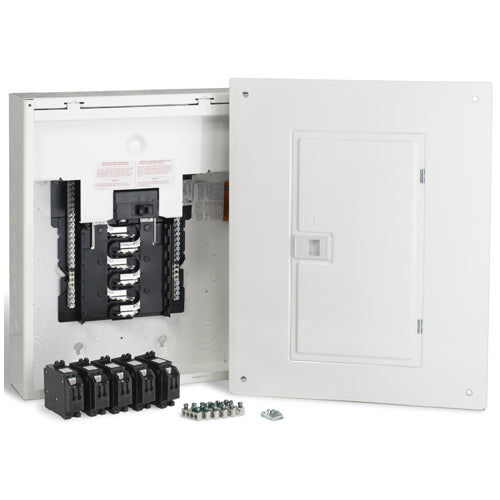

100A/12 Spaces/24 Circuits HomeLine Retrofit Panel Package-Each

HomeLine panel packages combine a service entrance loadcentre with a selection of breakers for easy installation. This panel offers speed and safety features such as, straight-in main breaker wiring, painted appliance white finish for no sharp edges, drywall markers for accurate installation and a shielded bus design. Breakers Included: 5 - 1Pole 15A Tandems (Space Savers). Distributed neutral with backed out screws reduces clutter and simplifies wiring. Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire. Complete with latch door on the trim. CSA approved for vertical, horizontal or inverted mounting and suitable for Al/Cu conductors.

Breakers included: 5 - 1 pole 15 Amp tandems (Space savers)Expandable loadcentre capacity with the use of space saver breakersDistributed neutral with backed out screws reduces clutter and simplifies wiringSuitable for aluminum or copper conductorsIncludes latch door on the coverCSA approved for vertical, horizontal or inverted mountingMultiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wireExpandable loadcentre capacity with the use of HomeLine tandem or quad breakersWarranty: 10 years on enclosure, branch circuit breakers for the lifetime of the HomeLine load center in which it is installed-Width(mm)
361.95
Width(in)
14.25
Amperage
100
Brand/Model Compatibility
Homeline
Buss Bar Construction
Aluminum
Circuits
24
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
No
Ground Bar Installed
Yes
Height(cm)
45.5168
Height(in)
17.92
Height(mm)
455.168
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
12
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
Yes
Value Pack Contents
Breakers included: 5 - 1 pole 15 Amp tandems (Space Savers)
Width(cm)
36.195
