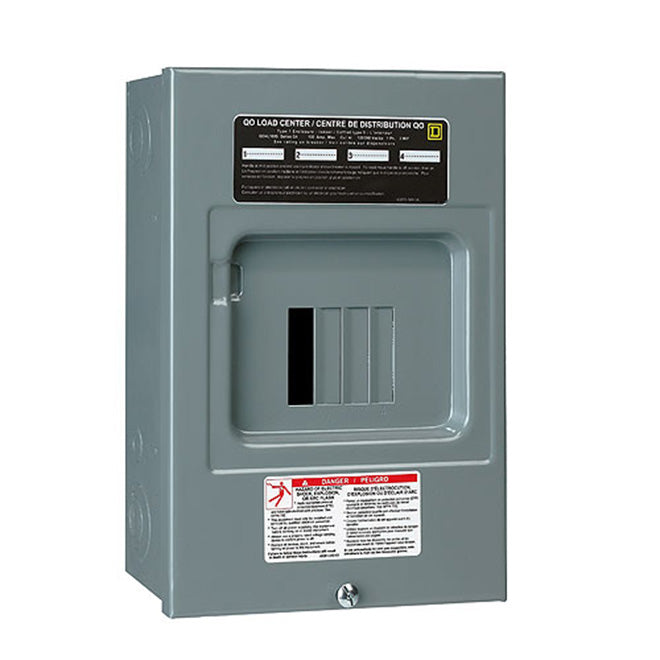

100A 4 Spaces/8 Circuit QO Sub Panel-Each
100A 4 Spaces/8 Circuit QO Sub Panel-Each
Main lugs loadcentres typically are used as an add-on load center and is connected to the service entrance loadcentre when spaces for more circuits are needed or when a main disconnect is located elsewhere. It does not contain a main breaker. 4 Spaces, expandable to 8 circuits maximum with the use of QO Tandem breakers. Type 1 Indoor Enclosure with surface mounted trim. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Main Wire Size - AWG/kcmil Al/Cu: #8-1.
1 Phase, 3 wire, 120/240VAC8 Spaces, expandable to 15 circuits maximum with the use of QO tandem breakersType 1 indoor enclosure with combination flush and surface trim to meet all mounting situationsCSA approved for vertical, horizontal or inverted mountingAccepts aluminum or copper conductorsMain wire size - AWG/kc mil aluminum/copper : #8-1Includes latch door on the coverCSA approved to only accept Canadian Square D QO circuit breakers-Width(mm)
228.6
Width(in)
9
Amperage
100
Brand/Model Compatibility
Square D
Buss Bar Construction
Aluminum and copper
Circuits
8
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
Yes
Ground Bar Installed
Yes
Height(cm)
32.385
Height(in)
12.75
Height(mm)
323.85
Manufacturer Color/Finish
Gray
Mounting Type
Surface
Number of Spaces
4
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
No
Series Name
QO
Use Location
Indoor
Value Pack
No
Value Pack Contents
Not apply
Width(cm)
22.86
