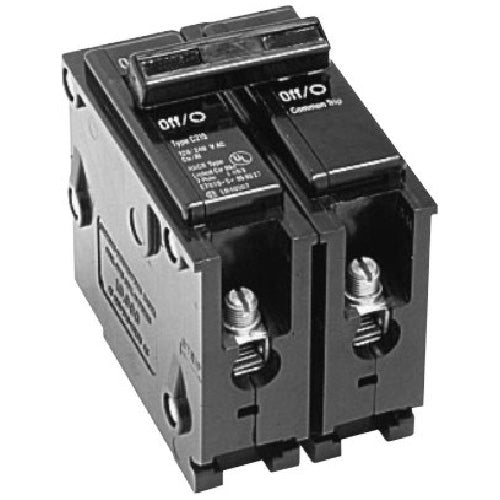

120/240 VAC 100 A BR Circuit Breaker 2 Pole Plug-In-Each
120/240 VAC 100 A BR Circuit Breaker 2 Pole Plug-In-Each
BR type circuit breaker with voltage rating of 120/240 VAC and current rating of 100 A. Has 2 poles. Plug-In styled mounting, has a interrupting current rating of 10,000 A. Wire size range is #4 - 1/0. Eaton type BR plug-in breakers in the standard 1-inch per pole moulded case and can be used as main and/or branch disconnect devices. All are CSA and UL listed. Typical ampacity range for BR breakers is 15 through 125 A. For sub feed applications in 200 or 400 A load centers requiring a 125, 150, 175, or 200 A sub feed circuit breaker a type BJ circuit breaker can be used. Refer to page 62 for product space requirements and selection.
Cutler-hammer series 2 pole circuit breaker100 Amp circuit breakerAcceptable for usage as a main10-year warranty-Width Measurement
1-in
UL Safety Listing
Yes
Amps(Amps)
100
Circuit Breaker Size
1 inch
Circuit Breaker Type
Main
Circuit Breaker Voltage
240
CSA Safety Listing
No
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
100-amp
Series
Type BR
Series Name
Type BR
Surge Protection
No
Type
Main
