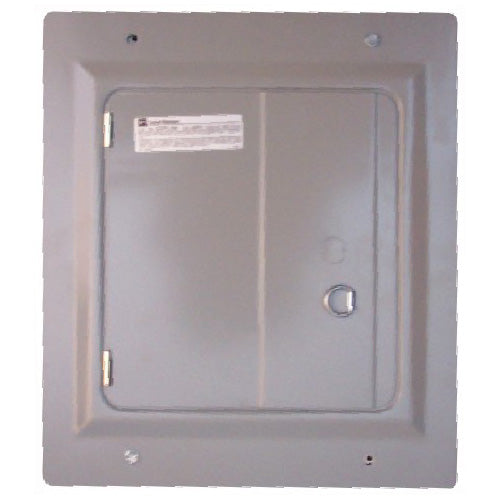

120/240 VAC 125 A CPL Load Center Single Phase and 3 Wires-Each

CPL type load center with voltage rating of 120/240 VAC and current rating of 125 A. Has a single phase and 3 wires. Has 4 to 8 circuits. With flush or surface mounting type. Load center measures 13 Inch in height, 11 Inch in width and 3 1/2 Inch in depth. LUG Connection. Wire size range for main CU/AL is #14 - 1/0. Service equipment approved when used with 2 pole BR type breaker. Extra neutrals which will expand available circuitry to a maximum of 84 circuits. Load center comes with a painted white trim and door.

Sub-panel with space for 4 single-pole BR or 8 single pole DNPL breakersIncludes door to cover breakers and galvanized steel backpan-Width(mm)
279.4
Width(in)
11
Amperage
100
Brand/Model Compatibility
NA
Buss Bar Construction
Aluminum
Circuits
8
Cover Included
Yes
Depth(cm)
8.89
Depth(in)
3.5
Depth(mm)
88.9
Feed-Through Lugs
No
Ground Bar Installed
Yes
Height(cm)
33.02
Height(in)
13
Height(mm)
330.2
Manufacturer Color/Finish
Gray
Mounting Type
Combination
Number of Spaces
4
Orientation
Side-by-side
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
No
Value Pack Contents
None- choose the breakers you want to purchase
Width(cm)
27.94
