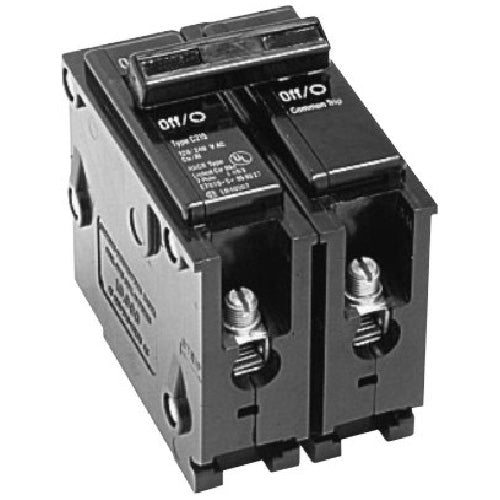

120/240 VAC 15 A BR Circuit Breaker 2 Poles Plug-In-Each
120/240 VAC 15 A BR Circuit Breaker 2 Poles Plug-In-Each
BR type circuit breaker with voltage rating of 120/240 VAC and current rating of 15 A. Has 2 poles. Plug-In styled mounting, has a interrupting current rating of 10,000 A. Wire size range is #14 - 4. Eaton type BR plug-in breakers in the standard 1-inch per pole moulded case and can be used as main and/or branch disconnect devices. All are CSA and UL listed. Typical ampacity range for BR breakers is 15 through 125 A. For sub feed applications in 200 or 400 A load centers requiring a 125, 150, 175, or 200 A sub feed circuit breaker a type BJ circuit breaker can be used.
Cutler-Hammer series, Type BRUse for short circuit and overload protectionBreaker trips to the center position, if tripped, turn OFF then back ON to resetRequires (2) 1-in spacesInterrupt rating is 10 kAICBR 2 pole circuit breakers carry listing for HACR applicationsEaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, and surge protection breakers-Width Measurement
2-in
Type
Standard trip
Circuit Breaker Voltage
240
File/Certification Number
E7819
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
15-amp
Safety Listing
UL safety listing
Series Name
Type BR
Surge Protection
No
