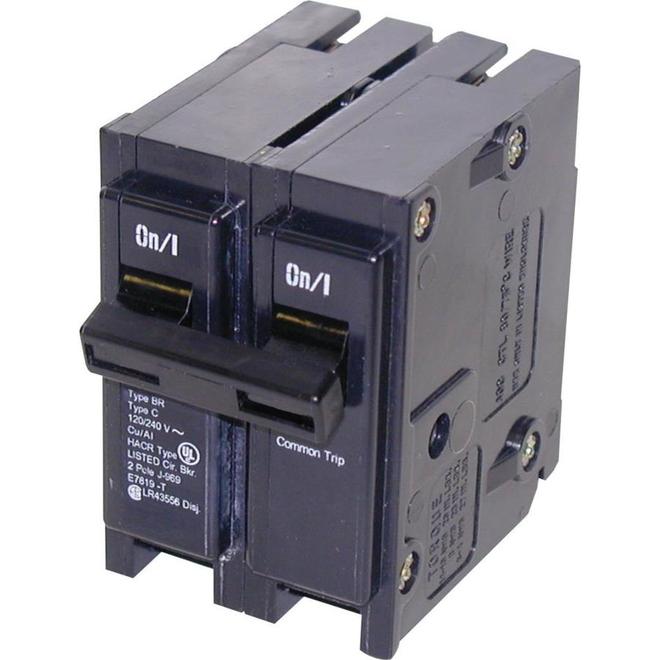

120/240 VAC 50 A BR Circuit Breaker 2 Pole Plug-In-Each
120/240 VAC 50 A BR Circuit Breaker 2 Pole Plug-In-Each
BR type circuit breaker with voltage rating of 120/240 VAC and current rating of 50 A. Has 2 poles. Plug-In styled mounting, has a interrupting current rating of 10,000 A. Wire size range is #14 - 4. Eaton type BR plug-in breakers in the standard 1-inch per pole moulded case and can be used as main and/or branch disconnect devices. All are CSA and UL listed. Typical ampacity range for BR breakers is 15 through 125 A. For sub feed applications in 200 or 400 A load centers requiring a 125, 150, 175, or 200 A sub feed circuit breaker a type BJ circuit breaker can be used. Refer to page 62 for product space requirements and selection.
For use in Eaton Type BR load centers and meter breaker panelsUL approved replacement for Bryant, Westinghouse and Challenger panelsBreaker trips to the center position, if tripped, turn OFF then back ON to resetRequires (2) 1-in spacesInterrupt rating is 10 kAICBR 2 pole circuit breakers carry listing for HACR applicationsEaton offers a full line of circuit breakers to meet all your protection needs including Arc Fault, ground fault, and surge protection breakers-Width Measurement
2-in
Type
Standard trip
Circuit Breaker Voltage
240
File/Certification Number
E7819
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
50-amp
Safety Listing
UL safety listing
Series Name
Type BR
Surge Protection
No
