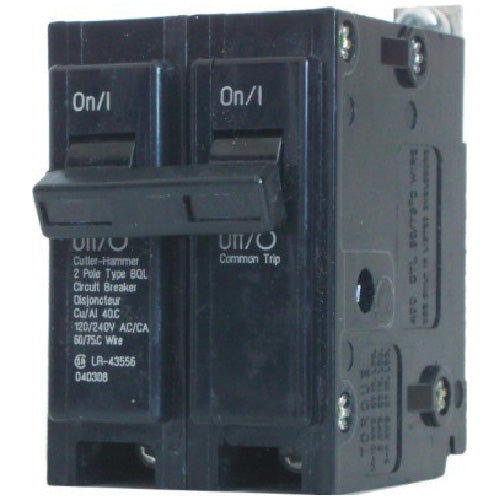

120/240 VAC 60 A BQL Circuit Breaker 2 Pole Bolt-On-Each

BQL type circuit breaker with voltage rating of 120/240 VAC and current rating of 60 A. Has 2 poles. Bolt-on styled mounting, has 10,000 A interrupting current rating of. Wire size range is #8 - 2/0. Eaton Type BR plug-in breakers in the standard 1-inch per pole moulded case and can be used as main and/or branch disconnect devices. All are CSA and UL listed. Typical ampacity range for BR breakers is 15 through 125 amperes. For sub feed applications in 200 or 400A load centres requiring a 125, 150, 175, or 200A sub feed circuit breaker a Type BJ circuit breaker can be used.

BQL type bolt-on breakers fit panels manufactured by Eaton Cutler-Hammer (QM/QL) and Commander (QL/QM)Protects: 1 x 2 pole 60Amp-Series
Type BQL
Series Name
Type BQL
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Circuit Breaker Voltage
240
Power Capacity
60-amp
Circuit Breaker Type
Standard trip
Type
Standard trip
Phase
Single phase (120/240)
ETL Safety Listing
No
Plug-On Neutral
No
Surge Protection
No
CSA Safety Listing
Yes
UL Safety Listing
Yes
Ground Fault Protection
No self test
Width Measurement
2-in
Amps(Amps)
60
Circuit Breaker Size
2"wide
