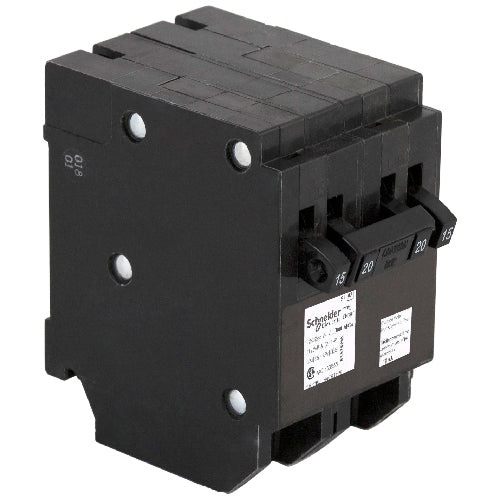

15/15A/1P - 20A/2P CHOM QUAD Circuit Breaker-Each

HomeLine breakers feature Qwik-Open circuit breakers, which give homeowners a new standard for reliable, fast acting circuit protection. Tandem and quad space saver circuit breakers are ideal for adding additional circuits to an existing HomeLine panel with limited space. Adding tandem or quad breakers double the number of circuits in a panel, as they only require 2 spaces in the panel. Provides overload and short circuit protection (120/240Vac). Inner Circuit: 1 - Double Pole 20A breaker / Outer Circuits: 2 - Single Pole 15A breakers. Accepts Al/Cu conductors, Lug Range #14-#8. 10,000 Amperes Interrupting Rating (AIR). CSA approved to only install in Canadian HomeLine Loadcentres

Provides overload and short circuit protection (120/240Vac)Inner circuit: 1 - double pole 20 Amp breaker, outer circuits: 2 - single pole 15 Amp breakersAccepts aluminum/copper conductors, lug range #14-#810,000 A interrupting rating (AIR)CSA listed for HACR (heating, air-conditioning and refrigeration equipment)CSA approved to only install in Canadian HomeLine loadcentres-Width Measurement
2-in
UL Safety Listing
No
Amps(Amps)
20
Circuit Breaker Size
2 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
20-amp
Series
CHOM
Series Name
CHOM
Surge Protection
No
Type
Standard trip
