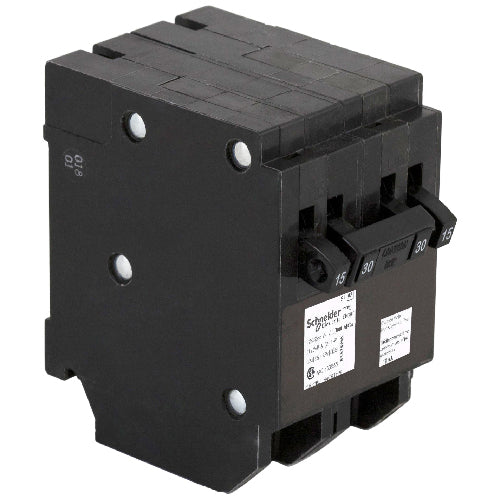

15/15A/1P - 30A/2P CHOM QUAD Circuit Breaker-Each

HomeLine breakers feature Qwik-Open circuit breakers, which give homeowners a new standard for reliable, fast acting circuit protection. Tandem and quad space saver circuit breakers are ideal for adding additional circuits to an existing HomeLine panel with limited space. Adding tandem or quad breakers double the number of circuits in a panel, as they only require 2 spaces in the panel. Provides overload and short circuit protection (120/240Vac). Inner Circuit: 1 - Double Pole 30A breaker / Outer Circuits: 2 - Single Pole 15A breakers. Accepts Al/Cu conductors. 10,000 Amperes Interrupting Rating (AIR). CSA approved to only install in Canadian HomeLine Loadcentres.

Provides overload and short circuit protection (120/240Vac)Includes a 30 Amp double pole breaker plus 2 x single pole 15 Amp breakersAccepts aluminum or copper conductors, lug range #14-#810,000 A interrupting rating (AIR)CSA listed for HACR (heating, air-conditioning and refrigeration equipment)CSA approved to only install in Canadian HomeLine loadcentres-Width Measurement
2-in
UL Safety Listing
No
Amps(Amps)
30
Circuit Breaker Size
2 inch
Circuit Breaker Type
Quad
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Series
CHOM
Series Name
CHOM
Surge Protection
No
Type
Quad
