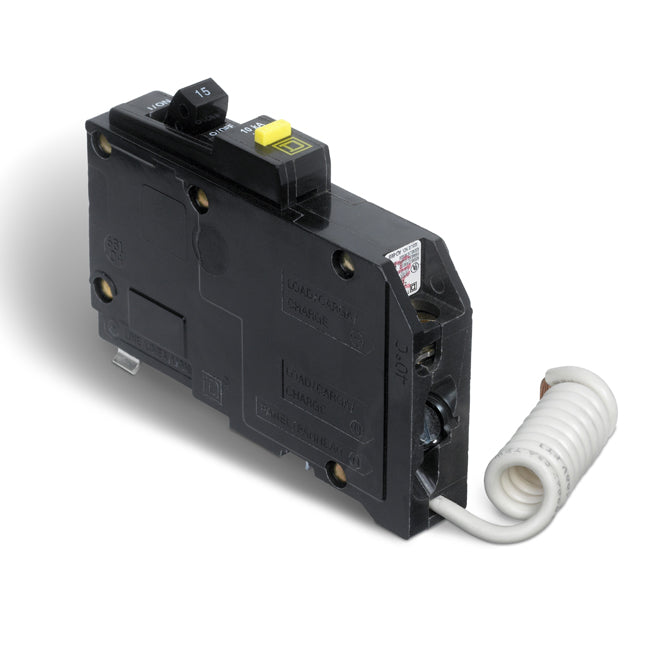

15-A 1P QO GFI Circuit Breaker-Each

QO ground Fault Circuit Interrupters (GFCIs) combine the same level of overcurrent circuit protection as standard QO Circuit Breakers, with ground fault protection for personal protection against electrical shock. GFCI protection is required in wet or damp areas such as bathrooms, kitchens, garages, spas, pools and outdoor receptacles. Do not connect to more than 250 feet of load conductor for the total one-way run to prevent nuisance tripping. The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. Provides overload, short circuit protection combined with Class A ground fault protection. Exclusive Visi-Trip red indicator. Yellow push to test button. Provides option for padlock in oON” or oOFF” position.

Provides overload, short circuit protection combined with Class A ground fault protectionClass A denotes a GFCI that will trip when a fault current to ground is 5 milliamps or more10,000 Amperes Interrupting Rating (AIR)Yellow push to test buttonAccepts aluminum or copper conductorsVisi-Trip indicatorLimited lifetime warrantyLimited lifetime warranty-Width Measurement
3/4-in
Warranty
Limited lifetime
Circuit Breaker Voltage
120
File/Certification Number
E48340
Ground Fault Protection
Self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
15-amp
Safety Listing
UL safety listing
Series Name
QO
Surge Protection
No
Type
Standard trip
