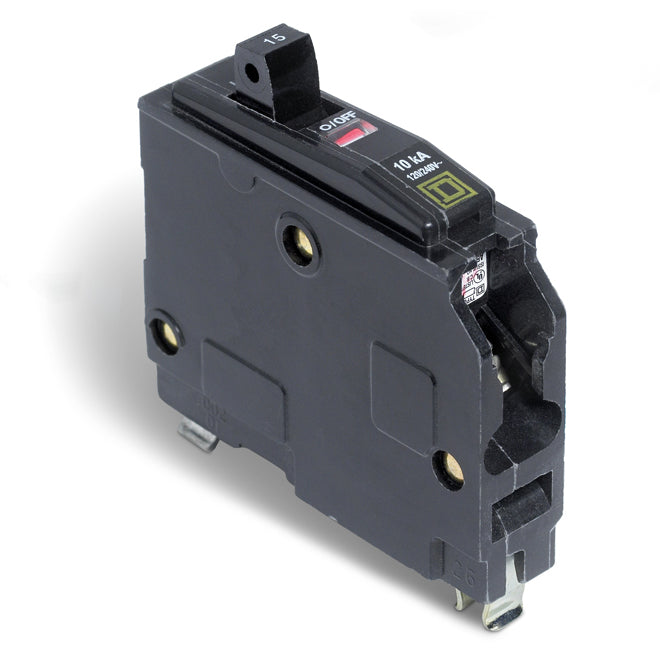

15A/1P QO HM Circuit Breaker-Each

High magnetic breakers are recommended for applications where high initial inrush current may occur. The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. The Visi-Trip reduces the number of call backs, as well as the chance that other circuits will be turned off accidentally. This breaker will work only in Square D branded residential panels. Provides overload and short circuit protection (120Vac). 10,000 Amperes Interrupting Rating (AIR). HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers.

Learn about general NEC 2020 updates, contact your local building inspector for adoptions and detailsIntended for overload and short-circuit protection of your electrical systemANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIREquipped with the exclusive Visi-Trip indicatorQO 15 Amp 1-pole circuit breakerPlug-on design, easy to installCompatible with QO load centers, CSED's and NQOD panel boards-Width Measurement
3/4-in
Warranty
1-year limited
Type
Standard trip
Circuit Breaker Voltage
120/240
File/Certification Number
84967A
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
15-amp
Safety Listing
UL safety listing
Series Name
QO
Surge Protection
No
