2-Pole 120/240 V AC GFCI Circuit Breaker - 40 A Rated-Each

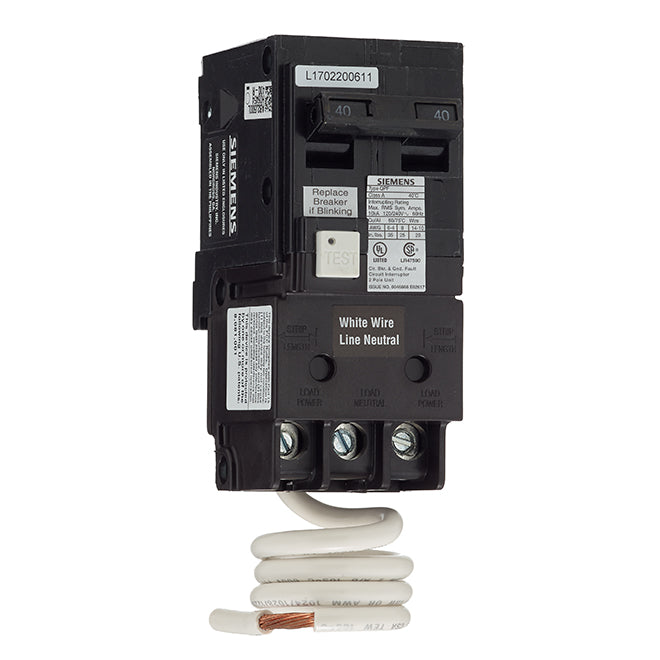

This Siemens 40 A rated GFCI 2-pole circuit breaker features a LED which allows to easily identify the tripped breaker. It also features a self-test function: if the breaker detects that it has been compromised, it trips itself and locks in this position so that it can't be reset. This circuit breaker range is designed to detect ground faults. The breaker provides overload and short circuit protection (120/240 V AC).

Device intended for personnel protection from Ground FaultsLED trip indicators to help identify fault conditionsAutonomously and continuously tests itself for device malfunctionSuitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etcSelf-test and lockout feature enables the GFCI circuit breaker to automatically and continuously test itself to ensure that it is working properly as required by UL 951Resists false tripping (shielded to prevent RF interference)Class A (5 mA) ground fault protectionWhite line neutral (pigtail) must be connected to the panel neutral for the device to function#14 - #8 AWG copper, #12 - #8 AWG aluminum wire range-Width Measurement
2-in
Warranty
1-year
Circuit Breaker Voltage
120
File/Certification Number
N/A
Ground Fault Protection
Self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
40-amp
Safety Listing
UL safety listing
Series Name
QPF
Surge Protection
No
Type
GFCI
+ Show all
