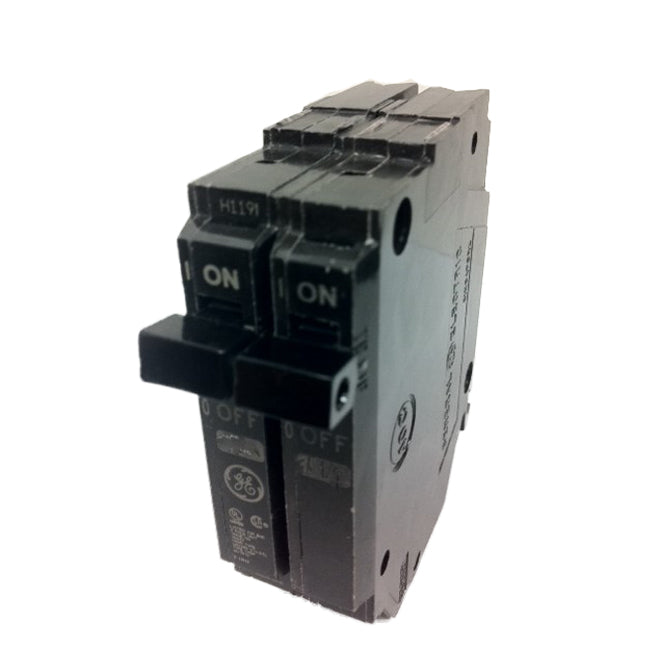

2-Pole Circuit Breaker - 30 A - 120/240 V-Each

This 2-pole GE Inventex™ circuit breaker is 15 A rated and can support up to 120 V or 240 V depending on the type of installation. The "Q-Line" series breakers are half the width of regular breakers but do not sacrifice the quality.

Q-Line plug-in breaker for residential load centersInternal common trip bar and box type terminalsQuick make, quick break switchTin-plated copper stab that creates permanent and corrosion-resistant connectionCalibration screw is cemented to prevent shifting and provides a stable connectionBreaker case is made of heat-resistant thermoset for stability and structural integrityTrips to the center positionMeets NEMA standardsANSI certified, CSA and UL Listed-Width Measurement
1/2-in
Type
Standard trip
Surge Protection
No
Circuit Breaker Voltage
240
File/Certification Number
E11592
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Safety Listing
UL safety listing
Series Name
Q-Line THQP
