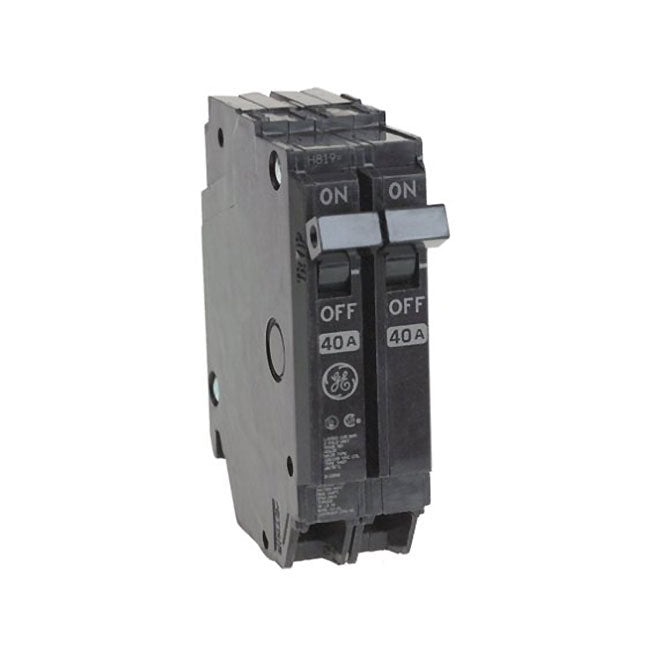

2-Pole Circuit Breaker - 40 A - 120/240 V-Each

This 2-pole GE(R) circuit breaker is 40 A rated and can support up to 120 V or 240 V depending on the type of installation. The "Thin" series breakers are half the width of regular breakers but do not sacrifice the quality.

Q-Line plug-in breaker for residential load centersInternal common trip bar and box type terminalsQuick make, quick break switchTin-plated copper stabs create reliable, permanent and corrosion-resistant connectionsCalibration screw is cemented to prevent shiftingBreaker case is made of heat-resistant thermoset for stability and structural integrityTrips to the center positionMeets NEMA standards, ANSI certified, CSA and UL ListedThe warranty is one (1) year from first use or eighteen (18) months from delivery, whichever occurs first-Width Measurement
1/2-in
Type
Standard trip
Surge Protection
No
Circuit Breaker Voltage
240
File/Certification Number
E11592
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
40-amp
Safety Listing
UL safety listing
Series Name
Q-Line THQP
