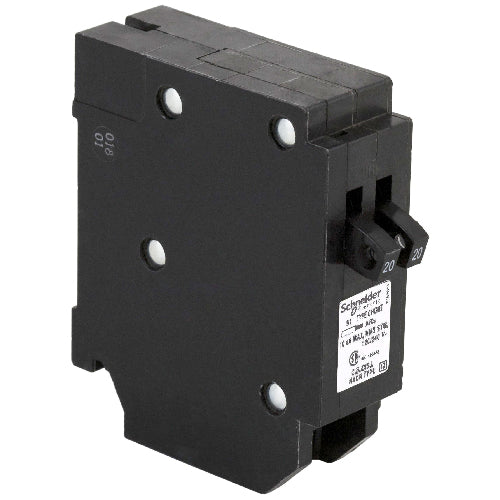

20/20A CHOM Tandem Circuit Breaker-Each

The HomeLine tandem circuit breakers are a perfect low cost solution if you need to add an extra circuit when your main panel is full. Adding tandem breakers double the number of circuits in a panel. HomeLine circuit breakers provide the high level of protection you expect from Schneider Electric. When it comes to electrical protection, fast response is critical and HomeLine circuit breakers can trip faster than the blink of an eye. Typical application for a single pole 20 Amp breaker include kitchen counter outlets circuits with GFCI protection and requiring a wire size of 12-2. Provides overload and short circuit protection (120Vac). Provides overload and short circuit protection (120Vac). CSA approved to only install in Canadian HomeLine Loadcentres.

Provides overload and short circuit protection (120Vac)Contains: 2 - single pole 20 Amp breakersAccepts aluminum/copper conductors, lug range #14-#810,000 A interrupting rating (AIR)CSA listed for HACR (heating, air-conditioning and refrigeration equipment)CSA approved to only install in Canadian HomeLine loadcentres-Width Measurement
1-in
UL Safety Listing
No
Amps(Amps)
20
Circuit Breaker Size
1 inch
Circuit Breaker Type
Tandem
Circuit Breaker Voltage
120
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
20-amp
Series
CHOM
Series Name
CHOM
Surge Protection
No
Type
Tandem
