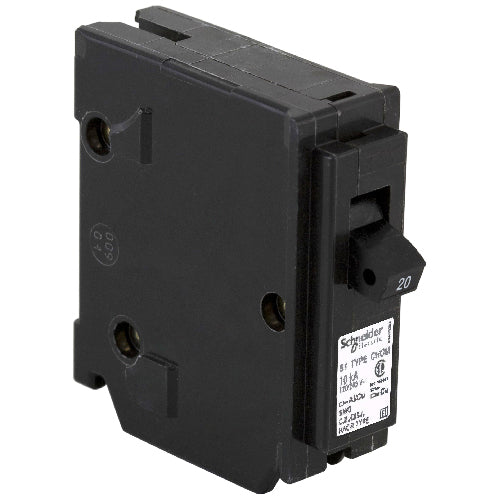

20A/1P CHOM Circuit Breaker-Each

HomeLine breakers feature Qwik-Open circuit breakers, which give homeowners a new standard for reliable, fast acting circuit protection. Typical application for a single pole 20 Amp breaker include kitchen counter outlets circuits with GFCI protection and requiring a wire size of 12-2. Provides overload and short circuit protection (240Vac). Accepts Al/Cu conductors, Lug Range #14-#8. CSA approved to only install in Canadian HomeLine loadcentres. 10,000 Amperes Interrupting Rating (AIR). SWD (switching duty) rated. Suitable for switching 120Vac fluorescent lighting loads.

Provides overload and short circuit protectionAccepts aluminum/copper conductors, lug range #14-#8CSA listed for HACR (heating, air-conditioning and refrigeration equipment)10,000 A interrupting rating (AIR)SWD (switching duty) rated, suitable for switching 120Vac fluorescent lighting loadsCSA approved to only install in Canadian HomeLine loadcentresSingle pole 15 A and 20 A breakers are switching duty rated, suitable for switching 120Vac fluorescent lighting loads-Width Measurement
1-in
UL Safety Listing
No
Type
Standard trip
Amps(Amps)
20
Circuit Breaker Size
1 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
120
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
20-amp
Series
CHOM
Series Name
CHOM
Surge Protection
No
