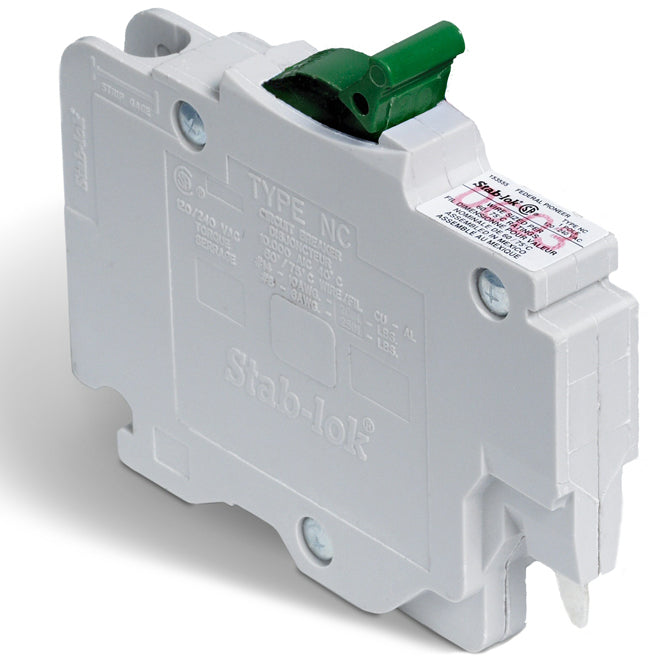

30-A 1P (NC) Circuit Breaker-Each

Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 thick per pole, allows for the reduction of the size and weight of the loadcentre. This breaker will work only in Federal Pioneer Stab-lok branded residential panels.
•Provides overload and short circuit protection (120Vac). Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings. 10,000 Amperes Interrupting Rating (AIR). Lug Range: #14 - #6. Thermal magnetic trip protection. Provides Slot/Robertson screws.

Provides overload and short circuit protection (120Vac)Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings10,000 A interrupting rating (AIR)Lug range: #14 - #6Thermal magnetic trip protectionProvides slot/Robertson screws-Width Measurement
1-1/2-in
UL Safety Listing
No
Amps(Amps)
30
Circuit Breaker Size
0.5 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
120
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Series
NC
Series Name
NC
Surge Protection
No
Type
Standard trip
