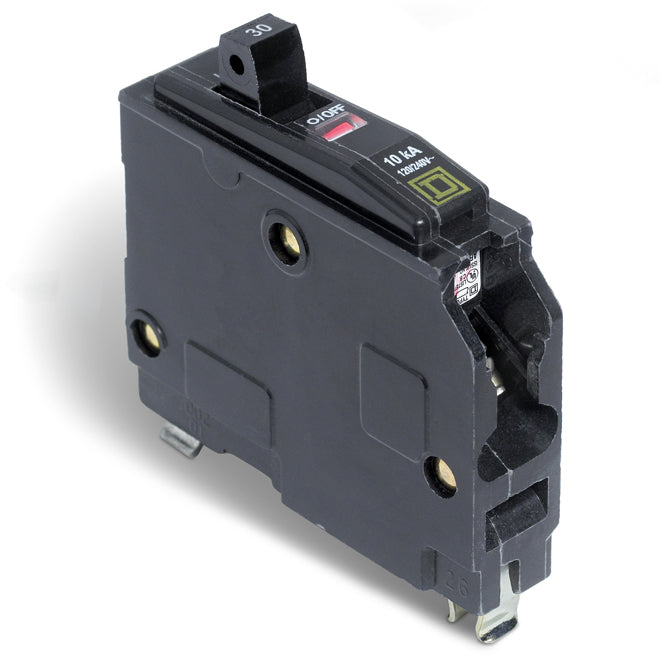

30-A 1P QO Circuit Breaker-Each

The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. The Visi-Trip reduces the number of call backs, as well as the chance that other circuits will be turned off accidentally. This breaker will work only in Square D branded residential panels. Provides overload and short circuit protection (120Vac). 10,000 Amperes Interrupting Rating (AIR). HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers. Slot/Robertson screws for wire termination.

Provides overload and short circuit protection (120 Vac)Exclusive Visi-Trip red indicator10,000 Amperes Interrupting Rating (AIR)HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakersAccepts aluminum or copper conductorsSlot/Robertson screws for wire terminationCan padlock breaker in on or off positionLimited lifetime warranty-Width Measurement
3/4-in
Type
Standard trip
Circuit Breaker Voltage
120
File/Certification Number
E84967
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Safety Listing
UL safety listing
Series Name
QO
Surge Protection
No
