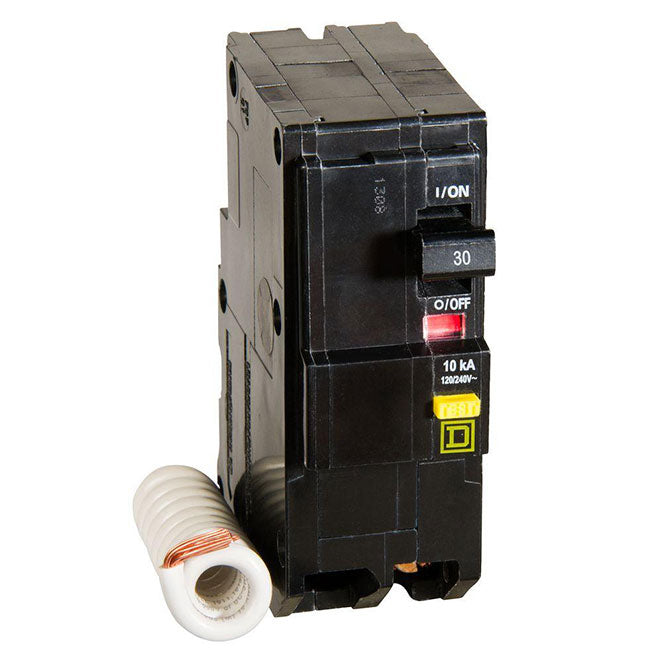

30A/2P QO GFI Circuit Breaker-Each

QO ground Fault Circuit Interrupters (GFCIs) combine the same level of overcurrent circuit protection as standard QO Circuit Breakers, with ground fault protection for personal protection against electrical shock. GFCI protection is required in wet or damp areas such as bathrooms, kitchens, garages, spas, pools and outdoor receptacles. Do not connect to more than 250 feet of load conductor for the total one-way run to prevent nuisance tripping. The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. Provides overload, short circuit protection combined with Class A ground fault protection. Class A denotes a GFCI that will trip when a fault current to ground is 5 milliamps or more. Yellow push to test button.

The Square D by Schneider Electric QO Qwik-Gard 30 Amp Two-pole GFCI Circuit Breaker is intended for protection of entire branch circuits where damp-location shock hazards may existWhen a QO Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breakerPlug-on design, easy to installCompatible with QO load centers, CSED's and NQOD panel boardsAllows up to 120/240 VacContains 10,000 AIRANSI certified and UL listedLimited lifetime warranty-Width Measurement
1-1/2-in
Warranty
Limited lifetime
Type
GFCI
Circuit Breaker Voltage
240
File/Certification Number
E48340
Ground Fault Protection
Self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Safety Listing
UL safety listing
Series Name
QO
Surge Protection
No
