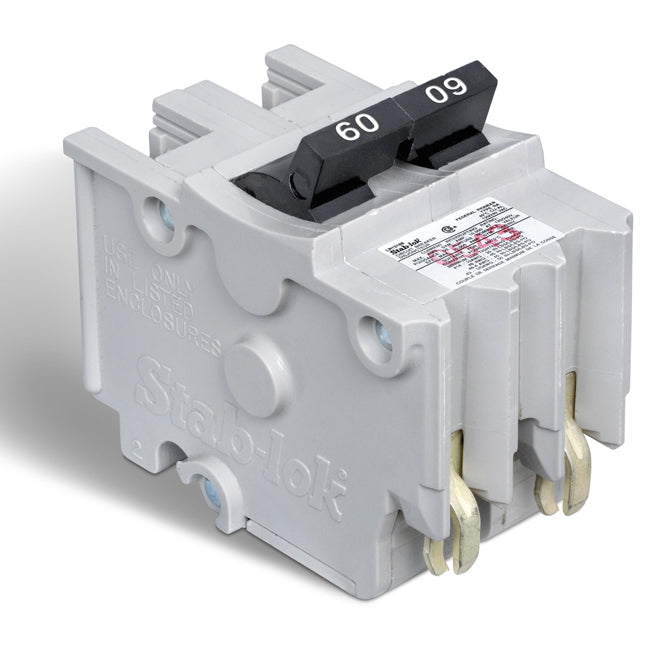

60-A 2P (NA) Circuit Breaker-Each

Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. This breaker will work only in Federal Pioneer Stab-lok branded residential panels. Typical application for a double pole 60 Amp breaker include feeding a sub panel device such as a 4 circuit 60A Stab-lok sub panel. Provides overload and short circuit protection (240Vac). NA 2 Pole breakers take 4 spaces in a Stab-lok panel. 10,000 Amperes Interrupting Rating (AIR). Lug Range: #14 - #2. Thermal magnetic trip protection.

Provides overload and short circuit protection (120/240Vac)Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings10,000 A interrupting rating (AIR)Lug range: #14 - #2Thermal magnetic trip protectionProvides slot/Robertson screwsThese 2 pole breakers take 4 spaces in a Stab-lok panelThis breaker will work only in Federal Pioneer Stab-lok branded residential panels-Width Measurement
2-in
UL Safety Listing
No
Amps(Amps)
60
Circuit Breaker Size
2 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
60-amp
Series
NC
Series Name
NC
Surge Protection
No
Type
Standard trip
