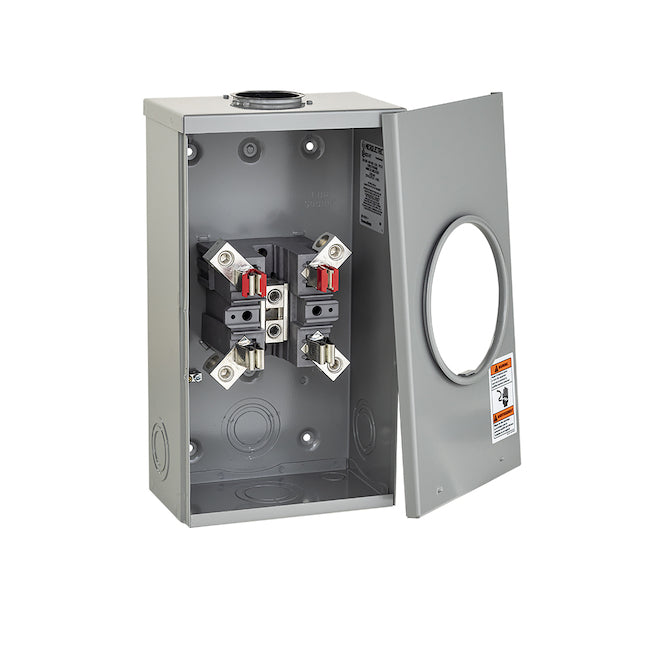

Base Meter 200 A-Each

Base meter. 200 A. Weatherproof type 3 enclosure. CSA approved for copper and aluminum. Conductor range: 6-250 mcm awg. aluminum tunnel type conductors. c/w screw type ring. 4 jaws. BQ2V

For overhead installationSupplied with screw type ring-Safety Listing
CSA safety listing
Amperage
200
Bypass Type
None
Cover Type
Flush
Feed Type
Overhead only
Feed-Through Lugs
No
File/Certification Number
27716
Jaw Quantity
4
Length(cm)
39.6875
Length(in)
15.625
Length(mm)
396.875
Meets EUSERC Requirements
No
Meter Socket Depth(cm)
13.732002
Meter Socket Depth(in)
5.4063
Meter Socket Depth(mm)
137.32002
Meter Socket Width(cm)
22.185376
Meter Socket Width(in)
8.7344
Meter Socket Width(mm)
221.85376
Meter Type
Ring
Number of Positions
1
Orientation
Over/Under
Pedestal
No
Phase Type
Single phase (120/240)
