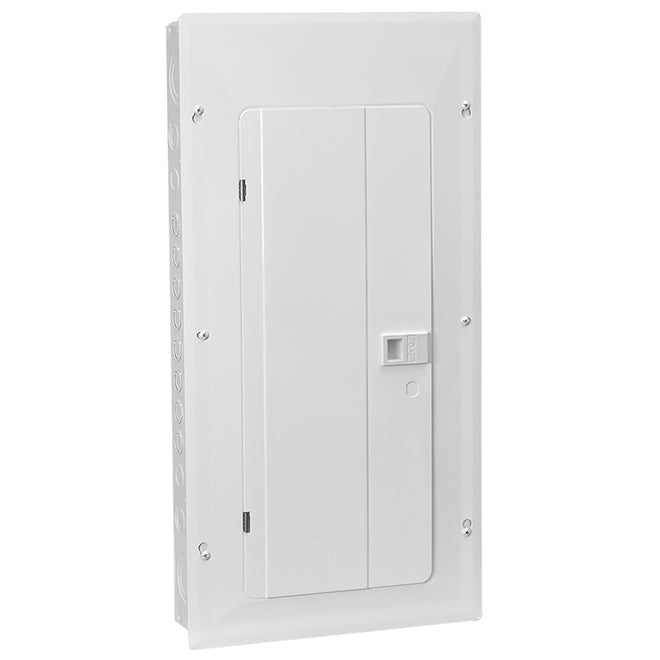

Eaton Loadcentre - BR - 30/60 - 100 A - 120/240 V-Each

Type BR plug on neutral loadcentre from Eaton. 100 A, 30 spaces with a maximum of 60 circuits, single-phase, 3 wires, 120/240 V ac. Included breakers: 8 x BR115, 2 x BR120, 1 x BR230, 1 x BR240 and 1 x BRP115AFC. This product includes a 10-year limited warranty.

BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savingsDedicated neutral bus for breaker connectionIn-board neutral bar increases gutter space to allow for professional installation of conductorsBacked out neutral screws allows for quick connection of neutral and ground conductorsOptimized knockout locations for additional access and easier to removeSelf-leveling tabs allow for quick drywall offset and helps simplify installationKeyhole hanging feature allows for ease of cover installation for both top and bottom feed applicationsRigid cover spine provides strength when twist outs are removed allowing for easier removalEaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection-Amperage
100
Brand/Model Compatibility
Type BR, DNPL, GFCB
Buss Bar Construction
Aluminum
Circuits
60
Cover Included
Yes
Depth(cm)
9.8552
Depth(in)
3.88
Depth(mm)
98.552
Feed-Through Lugs
No
File/Certification Number
CSA listed to file LL98266
Ground Bar Installed
Yes
Height(cm)
73.9902
Height(in)
29.13
Height(mm)
739.902
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
30
Orientation
Side-by-side
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Safety Listing
CSA safety listing
Series Name
N/A
Type
Main breaker
Usage
Service entrance
Use Location
Indoor
Value Pack
Yes
Value Pack Contents
Includes 8-BR115, 2-BR120, 1-BR230, 1-BR240, 1-BRP115AFC
Warranty
10-year limited
Width(cm)
36.5252
Width(in)
14.38
Width(mm)
365.252
