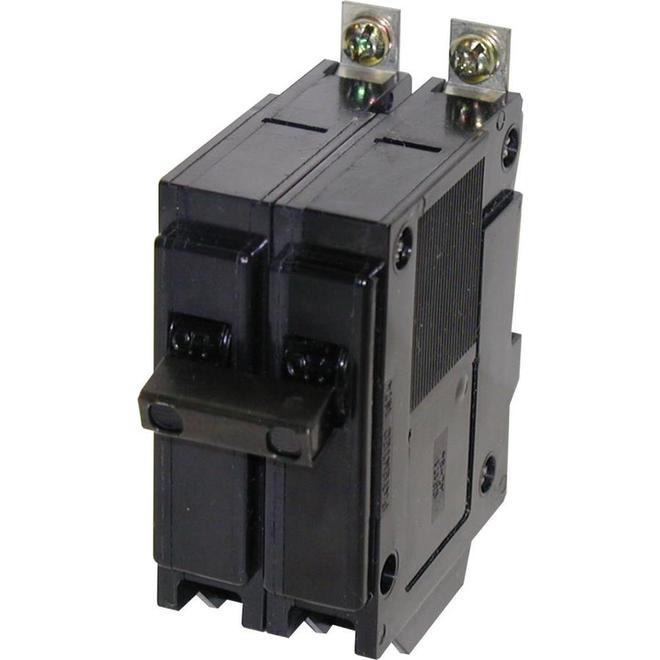

Eaton Type QBH 50-Amp Double-Pole Circuit Breaker-Each

This QBH-type circuit breaker features a voltage rating of 120/240 VAC, a current rating of 50 A and 2 poles. Bolt-on styled mounting, it has 10,000 A interrupting current rating. The wire size range is #10 - 2 CU, #10 - 1 AL. This product is suitable for load centers, lighting and distribution panelboards, and meter centers. Designed to fit the classic CEB, Sylvania or Commander Electric design bolt-on load centers, it comprises an internal common trip mechanism. Each breaker is electronically calibrated for 40°C. Compression moulded housing and handle for durability and service.

QBH type bolt-on breakers fit panels manufactured by C.E.B., Sylvania and Commander (B/BC)Protects: 1 x 2 pole 50Amp-Width Measurement
1-1/2-in
UL Safety Listing
Yes
Amps(Amps)
50
Circuit Breaker Size
1.5"wide
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
50-amp
Series
Type QBH
Series Name
Type QBH
Surge Protection
No
Type
Standard trip
