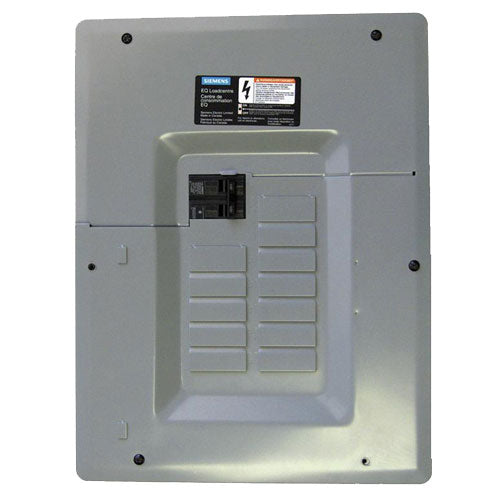

Electrical panel-Each

12/24 CCT, 100-A service entrance load centre with factory installed main breaker, 1 phase, 3 wires, 240 V AC max. A selection of assorted branch breakers is also included.

Can be expanded from 12 to 24 circuits as neededCombination flush or surface mount for versatile usePatented INSTA-WIRE(TM) neutrals and ground bars allow for faster installation with screws that are backed out and ready for wire insertionCertified for use with CU/AL conductorsVersatile design allows for vertical, horizontal or inverted mountingComes with the following breakers for your convenience: 2-Q1515NC, 1-Q21515CTNC, 1-Q21530CTNC, 1-Q21540CTNC-Use Location
Wall
Type
Enclosure
Assembled Depth(cm)
9.525
Assembled Depth(in)
3.75
Assembled Depth(mm)
95.25
Assembled Height(cm)
44.45
Assembled Height(in)
17.5
Assembled Height(mm)
444.5
Assembled Width(cm)
34.29
Assembled Width(in)
13.5
Assembled Width(mm)
342.9
Color/Finish Family
Gray
Construction Type
Molded
Cover Included
Yes
Low Voltage
No
Material
Steel
Mounting Type
Surface-mount
Series Name
N/A
