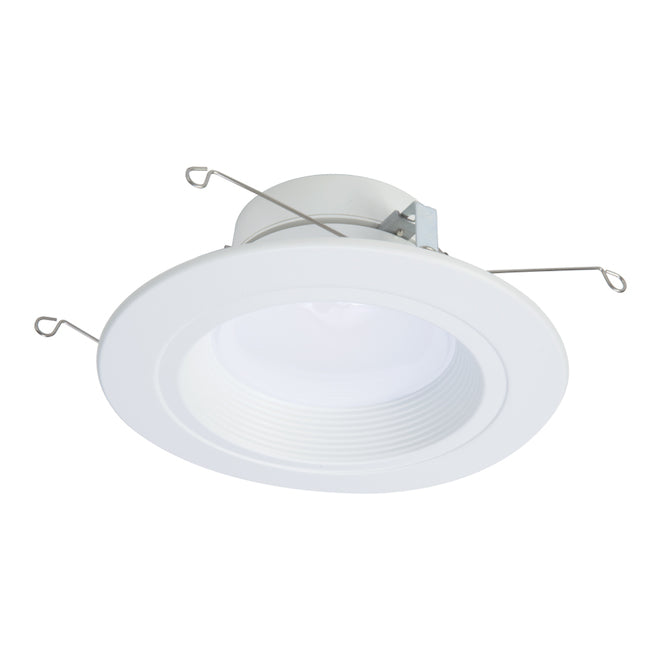

Halo 5-in or 6-in Canless Retro-Fit Baffle - White - Dimmable-

The Halo RL56 dimmable series is a complete LED baffle trim module that offers you the option of choosing your color temperature directly from the fixture. With the flick of a switch, you can choose between 5 color temperatures ranging from warm (2700K) to daylight (5000K) prior to installing into your compatible 5-in or 6-in. aperture recessed housings (UL certified with Halo, All-Pro and more). This module is designed for use in new construction, remodel and retrofit installation and features a LED driver that offers 120-Volt dimming capability. The RL56 lens provides uniform illumination and wet location listing. The die-cast construction makes any housing AIR-RITE for added HVAC savings and code compliance.

Energy Star qualified for energy conservation and savings up to four hundred dollars over the life of the fixture5 Discrete color temperature settings ranging from warm (2700K) to daylight (5000K)Attractive Halo matte white finish with a baffle in place to reduce ceiling glareCompatible with most 5 inch and 6 inch housings but are best with Halo H750, H2750, E26 and H7 series modelsGood brightness at 1221 Lumens to provide illumination to any room, great for 15 ft. ceilingsFixture is built to last with maintenance-free energy efficient LEDs with 70,000-hours of life-Collection Name
N/A
File/Certification Number
N/A
Shape
Round
Mount Type
Torsion springs
Encircled "E" Required on Product or Pkg
Yes
For Use on Drop Ceilings
Yes
For Use on Sloped Ceilings
Yes
For Use on Standard Ceilings
Yes
Selectable
Yes
Canless
Yes
Damp Rated
Yes
Dimmable
Yes
ENERGY STAR Certified
Yes
For Use in Bathrooms
Yes
For Use in Bedrooms
Yes
For Use in Foyers
Yes
For Use in Kitchen/Dining Rooms
Yes
For Use in Living Rooms
Yes
Retrofit
Yes
Title 24 Compliant
Yes
Safety Listing
cUL safety listing
Adjustable Head
No
Bluetooth Compatibility
No
Bulk Buy
No
Depth-Adjustable Socket
No
Junction Box Compatible
No
Smart Compatible
No
Trim Kit Included
No
Tunable
No
Style
Modern/Contemporary
Warranty
5-year limited
Light Color
Switchable white
Use Location
Interior/Exterior
Color/Finish Family
White
Manufacturer Color/Finish
White
Power Source
Screw-in
Minimum Depth Required(mm)
81.28
Minimum Depth Required(cm)
8.128
Rated Life(hrs)
70000
Diameter(in)
7.25
Color Temperature (Kelvins)
5000 Kelvins
Fits Housing Diameter
5-in or 6-in
Package Quantity
1
Minimum Depth Required(in)
3.2
Diameter(mm)
184.15
Diameter(cm)
18.415
Maximum Bulb Wattage
14
Maximum Fixture Wattage
14
Lumens
1200
Usage Rating
Wet rated
