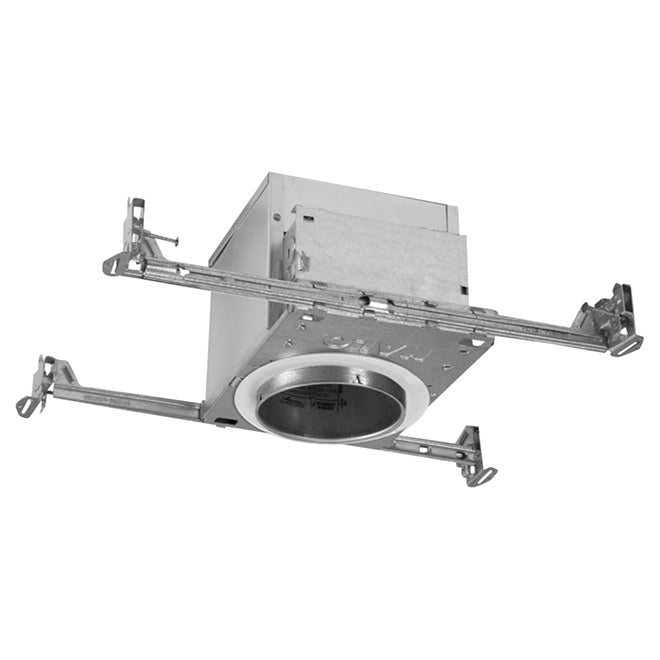

Halo Recessed Light Housing - New Construction - IC - Air-Tite - 4-in-

This Halo recessed light housing for new constructions features an Air-Tite design that prevents airflow between living spaces and unconditioned areas. It is compatible for applications in direct contact with insulation in insulated ceiling installations. A double wall aluminum construction helps dissipate heat, while the galvanized-steel die-formed housing and plaster frame construction provide durability. The housing can be removed from the plaster frame for junction box access. The small aperture recessed light housing is easy to install and has a Pass-N-Thru feature that allows tool-less shortening of bar hangers without having to remove it from the plaster frame. This Halo recessed light housing is designed to be used with 4-inch trims (not included).

Air-Tite(TM) housing prevents airflow from attic and living areasSlide-N-Side(TM) wire trapsDie-formed housing and plaster frameHousing may be removed from plaster frame for junction box accessDouble wall aluminum construction helps dissipate heatIC rated for direct contact with insulationWide variety of trims available to achieve different lighting effectsGot Nail!(TM) bar hangers for easy installationPass-N-Thru(TM) tool-less shortening of bar hangers-Minimum Depth Required(cm)
14.605
Maximum Bulb Wattage
50
Light Bulb Base Type
Medium base (E-26)
Minimum Depth Required(in)
5.75
Minimum Depth Required(mm)
146.05
Number of Bulbs Required
1
Package Quantity
1
Project Type
New construction
Recommended Light Bulb Shape
PAR30
Specialty Type
Shallow
Title 24 Compliant
No
Actual Diameter(cm)
11.1125
Actual Diameter(in)
4.375
Actual Diameter(mm)
111.125
Airtight Seal
Yes
Common Diameter(cm)
10.16
Common Diameter(in)
4
Common Diameter(mm)
101.6
Depth-Adjustable Socket
No
IC-Compatible
Airtight IC
+ Show all
