Halo Recessed Light Housing - Non-IC - Air-Tite - Remodel - 4-in-
Halo Recessed Light Housing - Non-IC - Air-Tite - Remodel - 4-in-

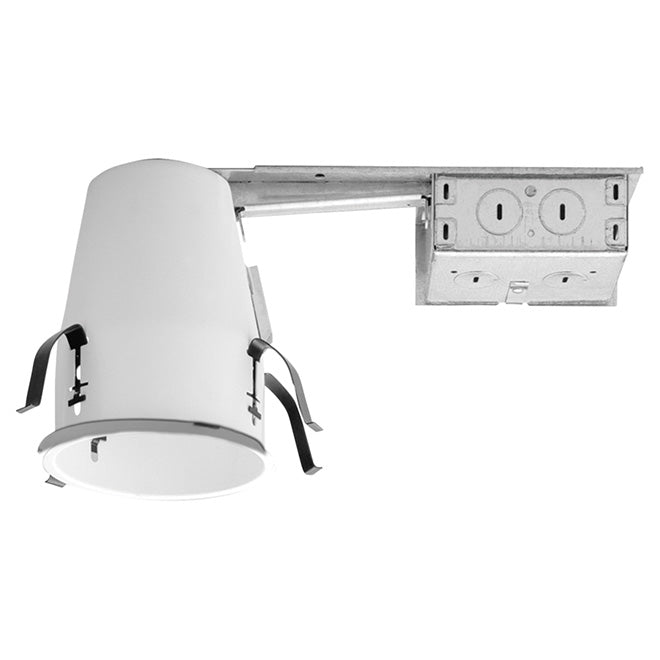

This 4-inch Halo retrofit recessed light housing is designed for use in existing non-insulated ceilings. The housing is Air-Tite and can be used in insulated ceilings where insulation is kept 3 inches from all sides of the fixture. It is formed of CRS and a powder coat finish for durability. This small aperture recessed housing is easy install from below the ceiling with 3 quick connect wiring connectors and 4 remodel clips that accommodate 1/2-inch and 5/8-inch ceiling materials. It has a fixed-position porcelain socket with a nickel-plated, brass screws shell that ensures the lamp stays in place. It is made to be used with 4-inch trims (not included).
Insulation must be kept 3-in from all sides of the housing5-1/2-in height allows for use in 2-in x 6-in joist constructionWide variety of trims available to achieve different lighting effectsRemodel springs accommodate 1/2-in and 5/8-in ceiling materialAir-Tite(TM) housing prevents airflow between attic and living areasQuick Connect(TM) wiring connectors included in junction boxBuilt-in thermal protector provides protection against over lampingDie-formed housing and plaster frameNon-metallic (NM) cable pry-outs and conduit knockouts in junction box-Actual Diameter(cm)
10.795
Actual Diameter(in)
4.25
Actual Diameter(mm)
107.95
Airtight Seal
Yes
Common Diameter(cm)
10.16
Common Diameter(in)
4
Common Diameter(mm)
101.6
Depth-Adjustable Socket
No
ENERGY STAR Certified
No
File/Certification Number
N/A
IC-Compatible
Airtight non-IC
Item Disclaimer
In-use/lifestyle recessed lighting images - accessories and home furnishings not included
Light Bulb Base Type
Medium base (E-26)
Maximum Bulb Wattage
50
Minimum Depth Required(cm)
12.7
Minimum Depth Required(in)
5
Minimum Depth Required(mm)
127
Number of Bulbs Required
1
Package Quantity
1
Project Type
Remodel
Recommended Light Bulb Shape
PAR30
Safety Listing
cUL safety listing
Specialty Type
Shallow
Title 24 Compliant
No
Warranty
1-year
