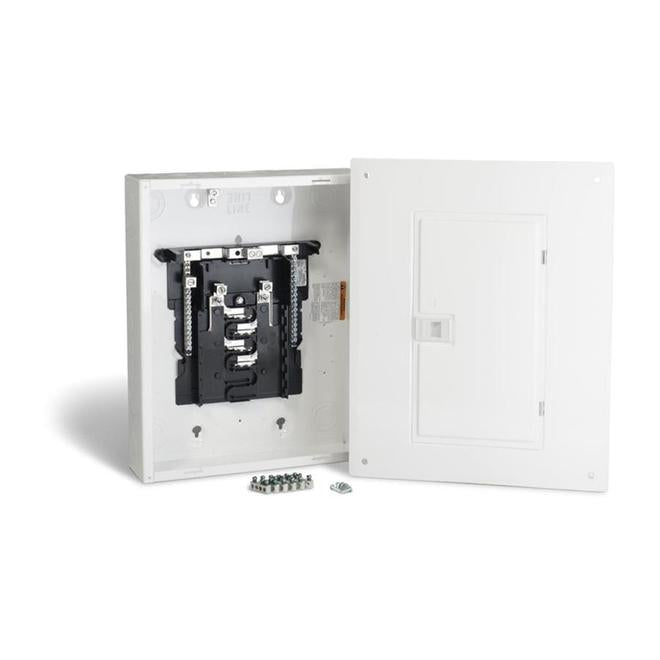

Homeline 125 Amp HomeLine Sub Panel Loadcentre with 8 Spaces, 16 Circuits Maximum-Each

This electrical panel by Homeline® features a 125 A current rating and 16 circuits. This sub panel is ideal if your main service panel is full or if you want additional circuits. This product features a shielded bus and interior assembly for a secure use. CSA approved for vertical, horizontal or inverted mounting. Limited ten-year warranty.

1 Phase, 3 wire, 120/240VAC8 Spaces, expandable to 16 circuits maximum with the use of HomeLine tandem or quad breakersType 1 indoor enclosure with combination flush/surface trim to meet all mounting situationsCSA approved for vertical, horizontal or inverted mountingDistributed branch neutral reduces clutter and simplifies wiringMain wire size - AWG/kc mil Al/Cu: #6-2/0CSA approved to only accept Canadian HomeLine circuit breakersSuitable for aluminum or copper conductors-Width(mm)
361.95
Amperage
125
Brand/Model Compatibility
Fits most
Buss Bar Construction
Aluminum
Circuits
16
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
Yes
Ground Bar Installed
Yes
Height(cm)
45.5168
Height(in)
17.92
Height(mm)
455.168
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
8
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
No
Value Pack Contents
Not apply
Width(cm)
36.195
Width(in)
14.25
