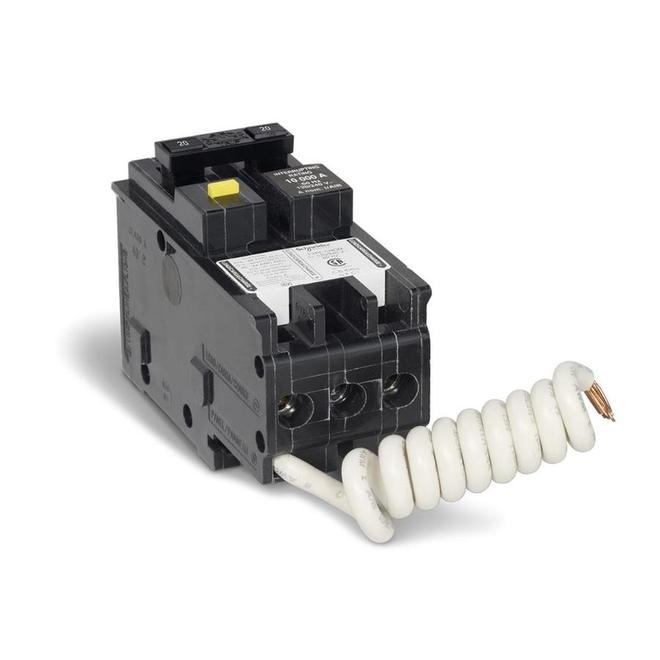

Homeline 20-Amp CHOM GFI Ground Fault Plug-On Circuit Breaker-Each

The HomeLine Ground Fault circuit interrupter protects people against electrical shocks. GFCI protection is required in wet or damp areas such as bathrooms, kitchens, garages, spas, pools and outdoor receptacles. Do not connect to more than 250 feet of load conductor for the total one-way run to prevent nuisance tripping. Use solid conductor only when #14 wire is used. Provides overload, short circuit protection combined with Class A ground fault protection. Class A denotes a GFCI that will trip when a fault current to ground is 5 milliamps or more. Yellow push to test button. CSA approved to only install in Canadian HomeLine Loadcentres.

CSA approved to only install in Canadian HomeLine loadcentresYellow push to test button10,000 A interrupting rating (AIR)Provides overload and short circuit protection combined with Class A ground fault protectionClass A denotes a GFCI that will trip when a fault current to ground is 5 milliamps or more-Width Measurement
2-in
UL Safety Listing
No
Type
GFCI
Surge Protection
No
Amps(Amps)
20
Circuit Breaker Size
2 inch
Circuit Breaker Type
GFCI
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
Self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
20-amp
Series
CHOM
Series Name
CHOM
