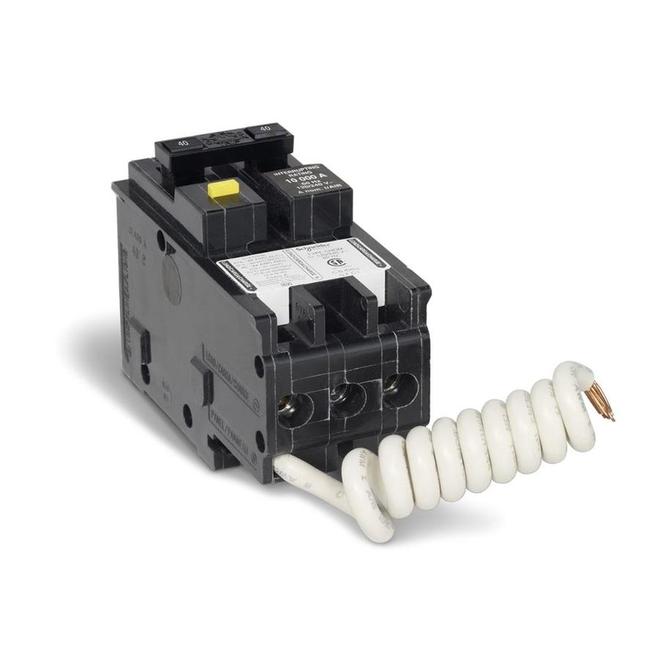

Homeline 40-Amp CHOM GFI Double Pole Ground Fault Plug-On Circuit Breaker-Each

GFCI protection is required in wet or damp areas such as bathrooms, kitchens, garages, spas, pools and outdoor receptacles. Provides overload and short circuit protection combined with class A ground fault protection. Class A denotes a GFCI that will trip when a fault current to ground is 5 milliamps or more.

CSA approved to only install in Canadian HomeLine loadcentresYellow push to test button10,000 A interrupting rating (AIR)Provides overload, short circuit protection combined with Class A ground fault protectionProvides overload, short circuit protection combined with Class A ground fault protection-Width Measurement
2-in
UL Safety Listing
No
Type
GFCI
Surge Protection
No
Amps(Amps)
40
Circuit Breaker Size
2 inch
Circuit Breaker Type
GFCI
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
Self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
40-amp
Series
CHOM
Series Name
CHOM
