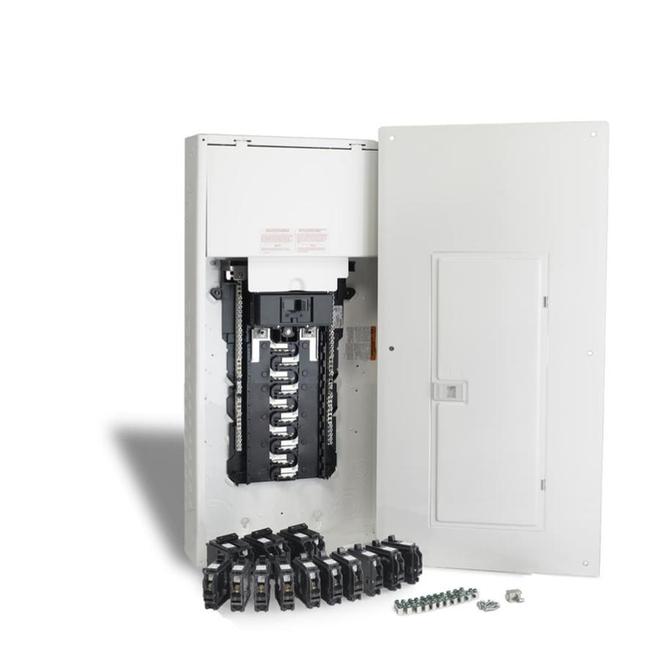

Homeline 40-Circuit 20-Space 200 Amp Main Breaker Load Center (Value Pack)-Each

This panel package by HomeLine® comes equipped with a load center and breakers. It features multiple horizontal ground bar mounting locations (left, right and bottom) letting you pick the easiest spot to wire. This product comes complete with latch door on the trim. Distributed neutral with backed out screws reduces clutter and simplifies wiring. Breakers Included: 10-1pole 15a ,1-2pole 15a, 2pole 30a and 1 2pole 40a. CSA approved for vertical, horizontal or inverted mounting and suitable for Al/Cu conductors. Limited ten-year warranty.

Breakers included: 10 - 1 pole 15 Amp, 1 - 2 pole 15 Amp, 1 - 2 pole 30 Amp, 1 - 2 pole 40 AmpExpandable loadcentre capacity with the use of space saver breakersDistributed neutral with backed out screws reduces clutter and simplifies wiringSuitable for aluminum or copper conductorsIncludes latch door on the coverCSA approved for vertical, horizontal or inverted mountingMultiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wireExpandable loadcentre capacity with the use of HomeLine tandem or quad breakers-Amperage
200
Brand/Model Compatibility
Fits most
Buss Bar Construction
Aluminum
Circuits
40
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
No
Ground Bar Installed
Yes
Height(cm)
75.8444
Height(in)
29.86
Height(mm)
758.444
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
20
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
No
Series Name
CHOM
Use Location
Indoor
Value Pack
Yes
Value Pack Contents
Breakers included: 10 - 1 pole 15 Amp, 1 - 2 pole 15 Amp, 1 - 2 pole 30 Amp, 1 - 2 pole 40 Amp
Width(cm)
36.195
Width(in)
14.25
Width(mm)
361.95
