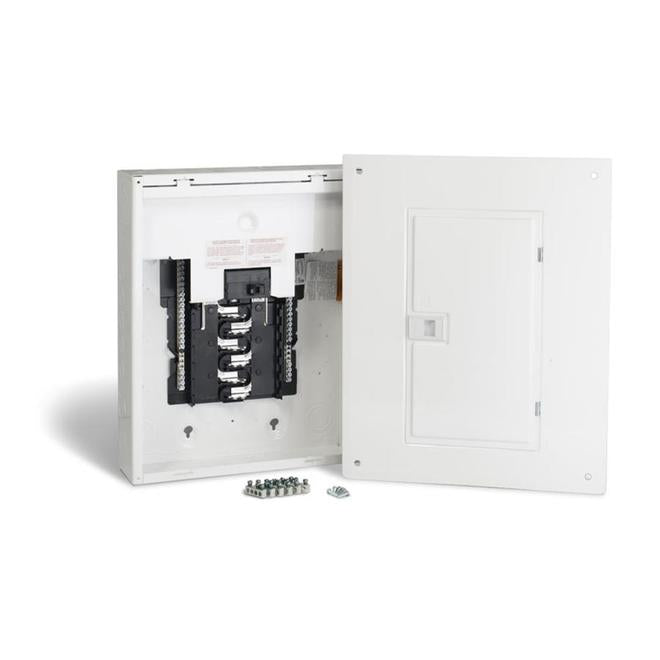

Homeline 60 Amp HomeLine Main Breaker Loadcentre with 24 Circuits Maximum-Each

This electrical panel by Homeline® features a 125 A current rating and 16 circuits. It comes equipped with a factory installed circuit breaker designed to turn off power to the load centre and to prevent a short circuit. The product is ideal for surface or flush mounting. CSA approved for vertical, horizontal or inverted mounting. Limited ten-year warranty.

Factory installed 60 Amp main breakerSuitable for surface or flush mountingCSA approved for vertical, horizontal or inverted mountingTandem or quad breakers allow you to easily expand the loadcentre capacitySuitable for aluminum or copper conductorsMain wire size - AWG/kc mil Al/Cu: #6-2/0Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire-Amperage
60
Brand/Model Compatibility
Fits most
Buss Bar Construction
Aluminum
Circuits
24
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
No
Ground Bar Installed
Yes
Height(cm)
45.5168
Height(in)
17.92
Height(mm)
455.168
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
12
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
No
Value Pack Contents
Not apply
Width(cm)
36.195
Width(in)
14.25
Width(mm)
361.95
