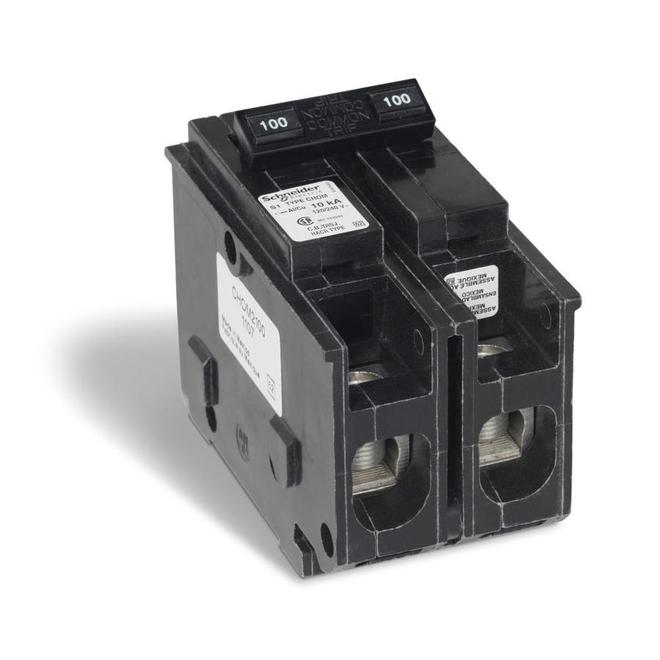

Homeline Double Pole 100-Amp CHOM Plug-On Circuit Breaker-Each

Homeline breakers feature Qwik-Open circuit breakers, giving homeowners a new standard for reliable, fast acting circuit protection. Provides overload and short circuit protection. CSA listed for heating, air conditioning and refrigeration equipment.

Provides overload and short circuit protectionAccepts aluminum/copper conductors, lug range #4-2/0CSA listed for HACR (heating, air-conditioning and refrigeration equipment)10,000 A interrupting rating (AIR)CSA approved to only install in Canadian HomeLine loadcentresAccepts 60/75°C wire up to 40A, 75°C wire over 40A-Amps(Amps)
100
Circuit Breaker Size
2 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
100-amp
Series
CHOM
Series Name
CHOM
Surge Protection
No
Type
Standard trip
UL Safety Listing
No
Width Measurement
2-in
