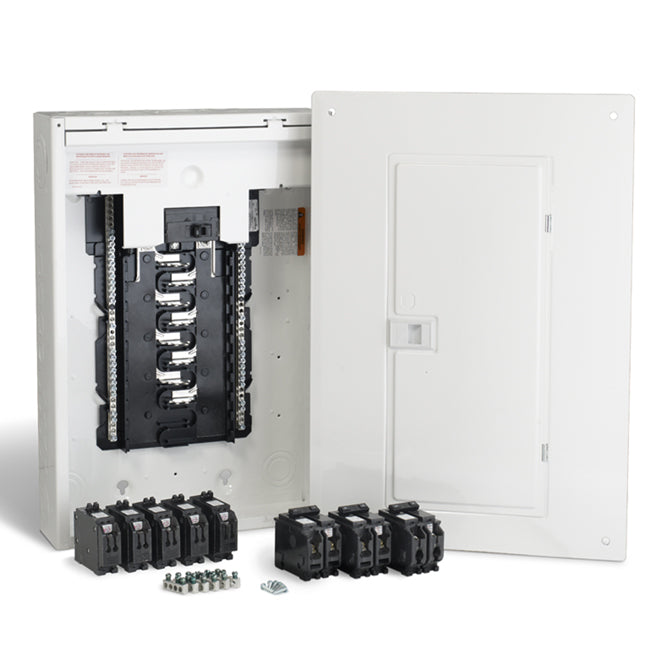

HomeLine Fastpak 100A/16 Spaces/32 Circuits Retrofit Panel Package-Each

HomeLine panel packages combine a service entrance loadcentre with a selection of breakers for easy installation. This panel offers speed and safety features such as, straight-in main breaker wiring, painted appliance white finish for no sharp edges, drywall markers for accurate installation and a shielded bus design. Breakers Included: 5 - 1Pole 15A Tandems (Space Savers), 1 - 2Pole 15A, 1 - 2Pole 30A, 1 - 2Pole 40A. Distributed neutral with backed out screws reduces clutter and simplifies wiring. Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire. Complete with latch door on the trim. CSA approved for vertical, horizontal or inverted mounting and suitable for Al/Cu conductors.

Breakers included: 5 - 1 pole 15 Amp tandems (Space savers), 1 - 2 pole 15 Amp, 1 - 2 pole 30 Amp, 1 - 2 pole 40 AmpUse space saver breakers to expand loadcentre capacityDistributed neutral with backed out screws reduces clutter and simplifies wiringSuitable for aluminum or copper conductorsIncludes latch door on the coverCSA approved for vertical, horizontal or inverted mountingMultiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wireExpandable loadcentre capacity with the use of HomeLine tandem or quad breakers-Amperage
100
Brand/Model Compatibility
Fits most
Buss Bar Construction
Aluminum
Circuits
32
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
No
Ground Bar Installed
Yes
Height(cm)
53.1368
Height(in)
20.92
Height(mm)
531.368
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
16
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
Yes
Value Pack Contents
Breakers included: 5 - 1 pole 15 Amp tandems (Space savers), 1 - 2 pole 15 Amp, 1 - 2 pole 30 Amp, 1 - 2 pole 40 Amp
Width(cm)
36.195
Width(in)
14.25
Width(mm)
361.95
+ Show all
