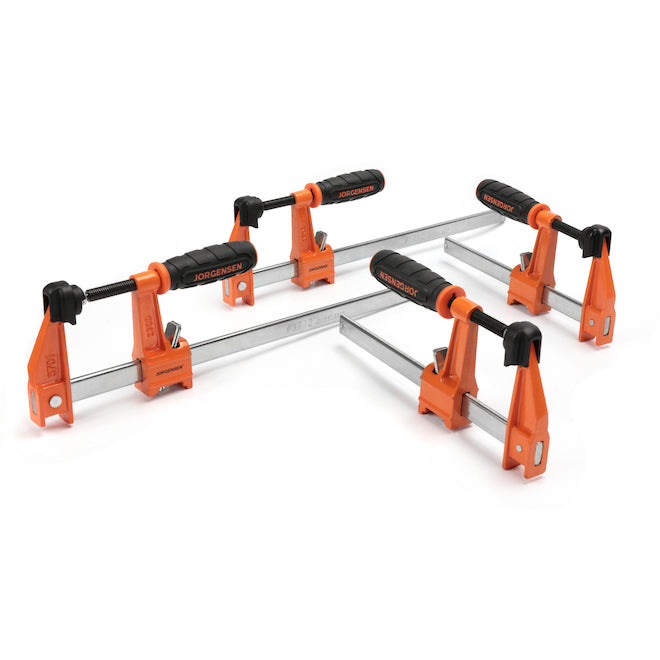

Jorgensen Bar Clamp 4-Piece Set - 2x 6-in - 2x 12-in - Each

The set of bar clamp Jorgensen includes 2x 6 inches bar clamps and 2x 12 inches bar clamps. The sliding head is threaded to accommodate the screw with large easy grip handle and swivel pad. All adjustments are made in the movable sliding head, making this style fast acting, easy to open and close and suitable for close quarters clamping. You can easily move the sliding head up and down the bar. The 3/8 inch steel screw with easy grip handle and 3/4-in diameter plated steel swivel can be tightened or loosened to meet your exact pressure needs. This item includes 2 pack of 6 inches bar clamp and 2 pack of 12 inches bar clamp which have 2-1/2 inches reach and 600 Lb. load limit. The strong, light weight 1/4-in x 3/4-in steel bars are plated to be rust resistant. The multiple-disc-clutch design consists of two hardened plated steel clutch discs and one spring which allows the sliding head to hold securely at any point along the bar.

Includes a set of 2 6-in bar clamps and 2 12-in bar clampsMaximum reach is 2-1/2 inches from edge of bar to center line of screwMaximum load limit is 600 poundsMaximum opening capacity are 6 inches and 12 inches
Specifications - Clamping Force(kg)
272.16
Warranty
Limited lifetime
Type
Bar
Clamping Force(lbs.)
600
Color/Finish Family
Orange
Material
Steel
Maximum Jaw Opening
Assorted
Package Quantity
4
Ratcheting
No
Series Name
600lb
Sub-Brand
N/A
Throat Depth(cm)
6.35
Throat Depth(in)
2.5
Throat Depth(mm)
63.5
