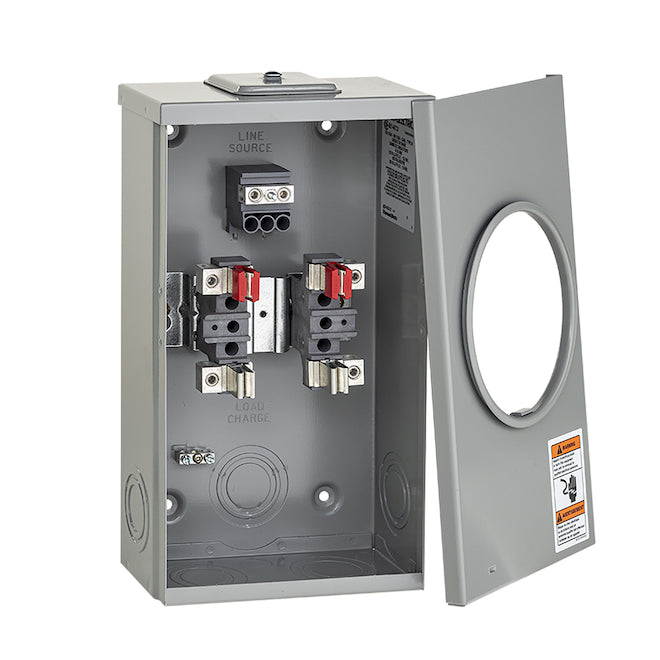

Microlectric 100A 600V 4-Jaw King Size Enclosure Meter Socket - Overhead-Underground Combination - Insulated Neutral-Each

Microlectric 100A 600V 4-jaw king-size enclosure meter socket combines superior quality and world class service and support. Supplied with a screw type ring, this meter socket is designed for both overhead and underground installations.

For overhead, underground and combination overhead/undergroundSupplied with screw type rings-Amperage
100
Bypass Type
None
Cover Type
Flush
Feed Type
Overhead/Underground
Feed-Through Lugs
No
File/Certification Number
27716
Jaw Quantity
4
Length(cm)
37.1475
Length(in)
14.625
Length(mm)
371.475
Meets EUSERC Requirements
No
Meter Socket Depth(cm)
12.065
Meter Socket Depth(in)
4.75
Meter Socket Depth(mm)
120.65
Meter Socket Width(cm)
20.955
Meter Socket Width(in)
8.25
Meter Socket Width(mm)
209.55
Meter Type
Ring
Number of Positions
1
Orientation
Over/Under
Pedestal
No
Phase Type
Single phase (120/240)
Safety Listing
CSA safety listing
