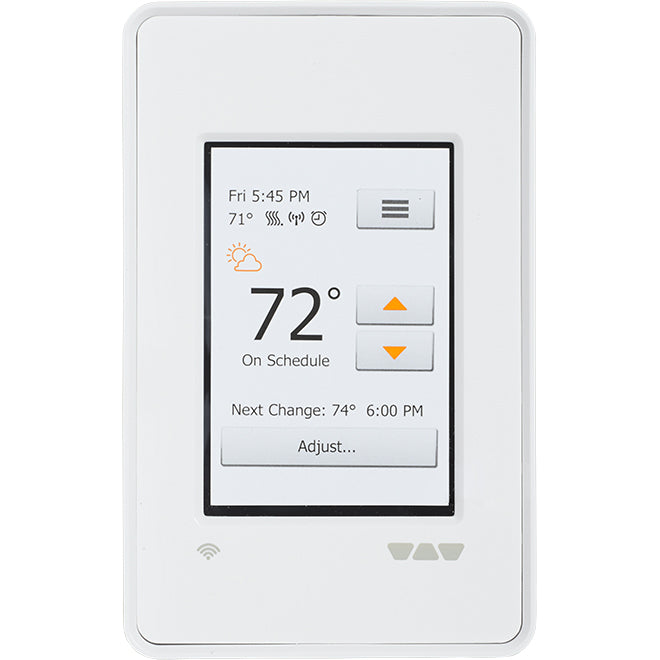

Schluter Systems Ditra-Heat 3.5-in x 6-in White PVC Touch Screen Wi-Fi Thermostat-Each

This programmable WIFI thermostat from Schluter Systems is used to control the DITRA-HEAT-E-HK heating cables (either 120 V or 240 V). The thermostat features a 5-mA built-in Class A ground fault circuit interrupter with an indicator light and includes a floor temperature sensor. DITRA-HEAT-E-RT is operated via LCD touchscreen controls and features a WIFI functionality that enables the user to control the Ditra-Heat electric floor warming system from a mobile app or online. The unit offers 6 programming periods per day and displays local temperature and weather forecast. Two heating cables may be connected to the thermostat, up to the total heating load limit of 15 Amp.

For use with Ditra-Heat heating cables and Ditra-Heat uncoupling membraneTouchscreen programmable Wi-Fi versionFeatures 6 programming periods per day with energy logThermostat can be controlled from a mobile app or onlineBuilt-in 5 mA ground fault circuit interrupter (GFCI) and indicator lightBright white color-Width(mm)
80.9625
Width(in)
3.1875
Width(cm)
8.09625
Compatibility
Schluter Ditra Heat
Coverage(ft2)
0.0
Coverage(m2)
0.0
Installation Location
N/A
Length(cm)
13.0175
Length(in)
5.125
Length(mm)
130.175
Manufacturer Color/Finish
White
Series Name
Ditra-Heat-E-WiFi
Technology
Digital
Touchscreen
Yes
Type
Programmable thermostat
Volts
Dual-voltage
Warranty
3-year limited
Wattage
0.0
Wi-Fi Compatibility
Yes
