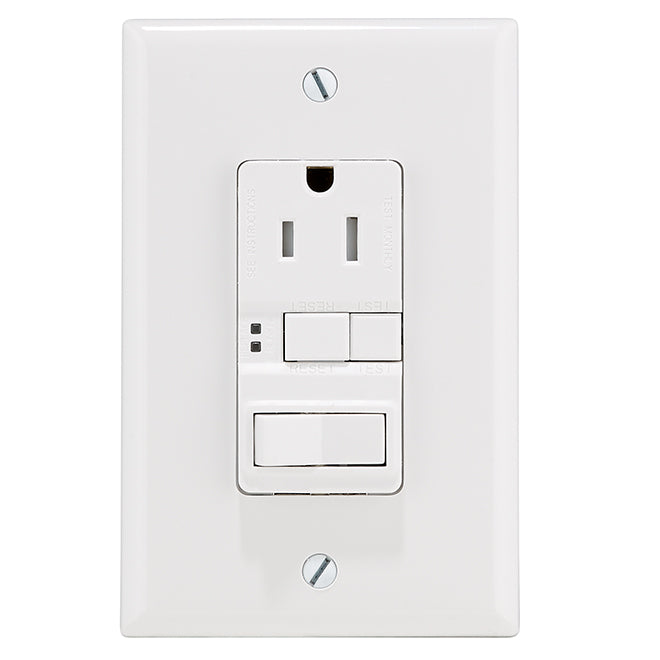

Self-Testing Outlet/Switch GFCI - 15 A 125 V/AC - White-Each

This device from Eaton® is a combination that includes a switch and tamper resistant self-test GFCI receptacle with a mid-size wall plate. It performs self-test to ensure integrity of GFCI protection, meaning an automatic test shall be initiated within 5 seconds of power availability to the line or load terminals, the automatic test shall be repeated at least every 3 hours. The device will trip and will not reset if GFCI protection is not available. The status indicator light will glow red notifying the user there is no power and the device must be replaced. A longer, wider bridged strap provides 40% more contact area with wallboard. It features safety shutter system that prevents the insertion of foreign objects into the receptacle openings. GFCI receptacle with feed-through single-pole switch rated. This product is covered by a 2-year warranty.

White finish GFCI TR receptacle offers a 15-amp, 125-volt capacity for long-term indoor useConvenient back and side wiring; tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wireTamper resistant (TR) receptacles feature a built-in UL listed safety shutter system that prevents the insertion of foreign objects into the receptacle openingsLine-load mis-wiring protection: GFCIs will not provide power downstream when wired incorrectlyWhen downstream receptacles are wired from load side, a 20A feed-through rating offers full protectionMeets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) UL943 safety standardsTri-combo head terminal and mounting screws includedVisual indicator lights give quick notification of a tripped or end of life conditionGFCI receptacle with feed-through single-pole switch rated-AFCI Protection
No
Amperage
15
App Compatibility
No
Audible Alarm
No
Bluetooth Compatibility
No
Collection Name
N/A
Connection Type
Back wire (clamp) or side wire
File/Certification Number
E60120
For Use with Mobile Homes
No
For Use with RVs
No
Function Type
Combination outlet
GFCI Protection
Yes
Grade
Residential
Grounding Type
Grounded
Hub Required
No
Industry Color
White
Item Disclaimer
Mid-size wall plate is included
Lockable
No
Manufacturer Color/Finish
White
NEMA Configuration
5-15R
Night Light
No
Package Quantity
1
Pop-Out
No
Recessed
No
Remote Controlled
No
Safety Listing
UL safety listing
Self-Test
Yes
Style
Decorator
Sub-Brand
N/A
Surge Protection
No
Tamper Resistant
Yes
Type
Switch outlet
USB Port
No
Use Location
Indoor
Voice Controlled
No
Volts
125-volt
Wall Plate Included
Yes
Warranty
1-year limited
Weather Resistant
No
Wi-Fi Compatibility
No
Wire Type
Copper
Wireless
No
Wiring Type
3-wire grounding
Works with Amazon Alexa
No
Works with Android
No
Works with Apple HomeKit
No
Works with iOS
No
Works with SmartThings
No
Works with the Google Assistant
No
