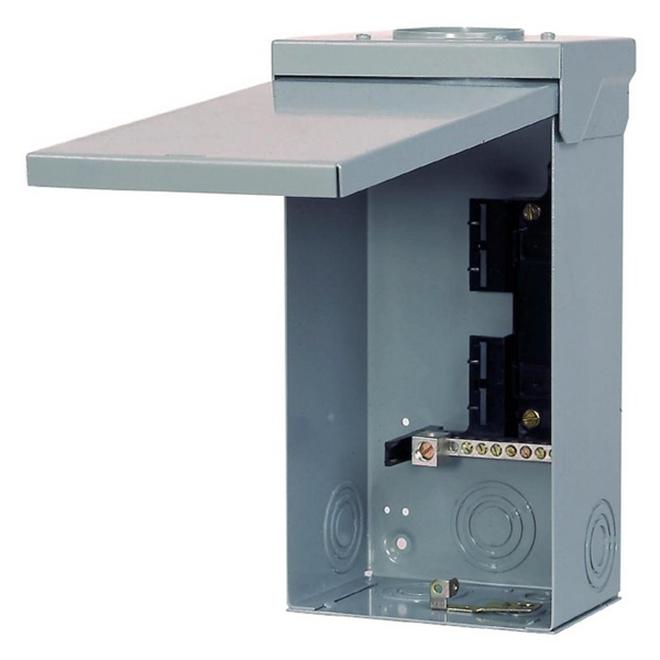

Siemens 4/8 Circuit 125 A 240 V Outdoor Loadcentres-Each

Spa panel, 3 R enclosure, 120/240 V, 1 phase, 3 wires. The W0408ML1125 spa panel is a versatile 125-A outdoor sub-panel. It fits single and double pole breakers. This spa panel handles 4 individual circuits expandable to 8. Use the additional circuits for l

1 Phase 3 wire4 Circuits expandable to 83R EnclosurePatented inst-wire neutrals and ground bars allow for faster installation, screws are backed out and ready for wire insertion-Width(mm)
152.4
Amperage
125
Brand/Model Compatibility
Siemens
Buss Bar Construction
Aluminum
Circuits
4
Cover Included
Yes
Depth(cm)
10.795
Depth(in)
4.25
Depth(mm)
107.95
Feed-Through Lugs
Yes
Ground Bar Installed
No
Height(cm)
31.115
Height(in)
12.25
Height(mm)
311.15
Manufacturer Color/Finish
Gray
Mounting Type
Semi-flush
Number of Spaces
4
Orientation
Side-by-side
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Outdoor
Value Pack
No
Value Pack Contents
N/A
Width(cm)
15.24
Width(in)
6
