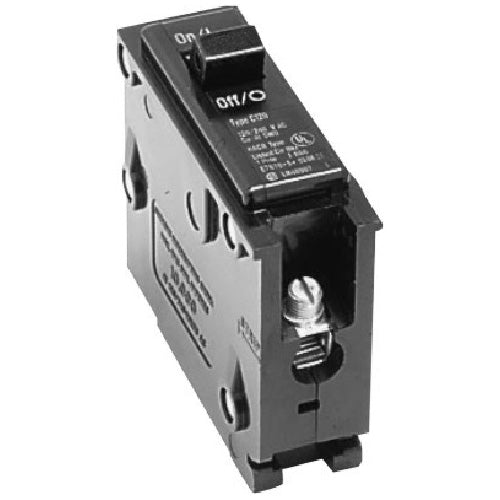

Single Pole Plug-in Breaker-Each

20 A single pole plug-in breaker. For overload and short-circuit protection of a home electrical system. 120/240 V. ANSI certified, CSA and UL listed.

For use in Eaton Type BR load centers and meter breaker panelsUL approved replacement for Bryant, Westinghouse and Challenger panelsBreaker trips to the center position, if tripped, turn OFF then back on to resetRequires 1-in spaceInterrupt rating is 10 kAICSwitch duty ratedBR 1 pole circuit breakers carry listing for HACR applicationsEaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, and surge protection breakers-Circuit Breaker Voltage
120
File/Certification Number
E7819
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
20-amp
Safety Listing
UL safety listing
Series Name
Type BR
Surge Protection
No
Type
Standard trip
Width Measurement
1-in
