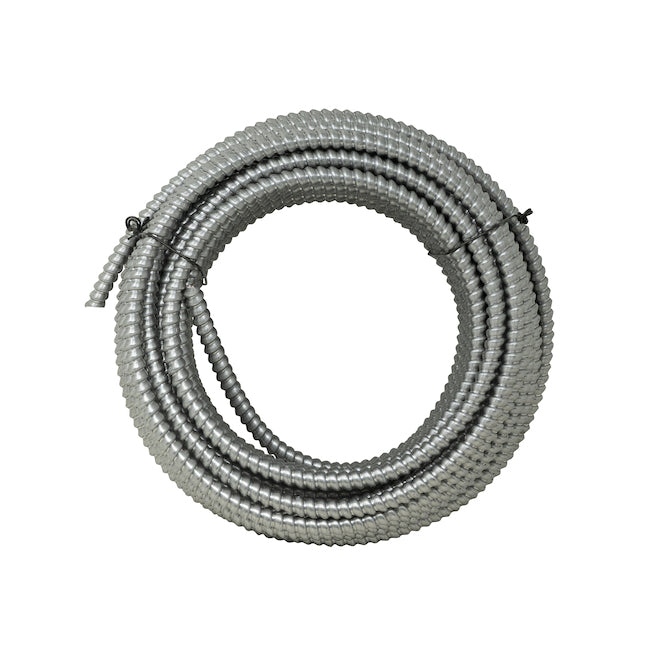

Southwire AC90 14/2 20 M Wire-Roll

Copper building wire, aluminum, 20-m spool, AC90 14/2. CSA, 600 V, 15 amp. Aluminum interlocking armoured cable. Cross-linked polyethylene RW90 conductors with copper bonding wire for open and concealed wiring in dry locations only. For use in cable troughs and ventilated flexible cable ways in dry locations only.

Consult the Canadian Electrical Code (CEC) for further information related to applicationsPrice, availability and Gauge size will vary by location, please contact your local Lowe's store for detailsUsed in dry locations only for open and concealed wiring as well as cable troughs and ventilated flexible cable waysMinimum recommended installation temperature is minus 40ºCMaximum allowable conductor temperature is 90ºC-Armor Material
Aluminum
Cable Length(cm)
609.6
Cable Length(ft)
20
Commercial/Residential
Commercial/Residential
Conductor Material
Copper
Type
AC cable
UV Resistant
No
Number of Conductors
2
Voltage Rating
600
Wire Gauge
14
Number of Strands
1
RoHs Compliant
Yes
Safety Listing
cULus safety listing
Series Name
N/A
Shielded
Yes
Stranded or Solid
Solid
Sub-Brand
N/A
Conduit Compatible
No
Direct Burial
Yes
File/Certification Number
51
Fire Resistant
No
Ground Wire
Green insulated copper
Maximum Amperage
125
Moisture Resistant
No
