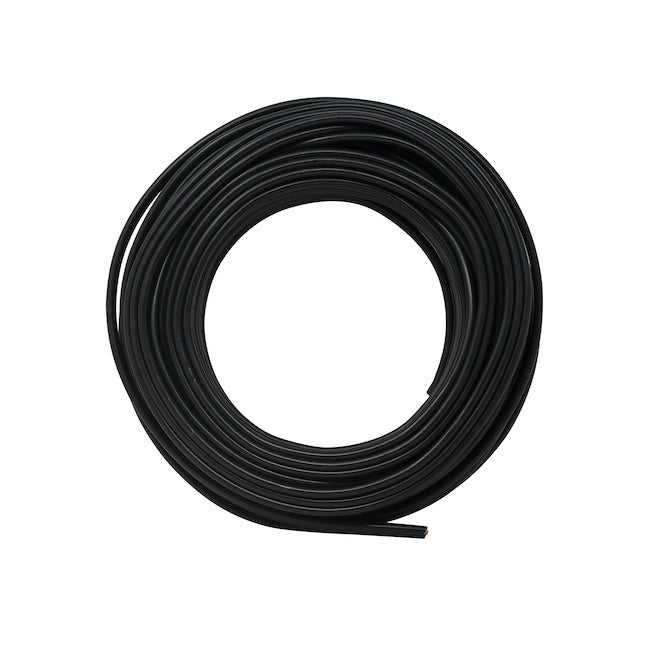

Southwire NMWU Building Wire-Roll

NMWU building wire. 98 ft. (30 m). 15 A. 300 V. 14/2 gauge. For direct burial wiring.

Used for underground installations, including direct burial, at conductor temperatures not exceeding 60ºC and for wet and corrosive locations such as wet basementsThe minimum recommended installation temperature is minus 40ºC for two-conductor cables (sizes AWG 14 through AWG 6) and minus 25ºC for all other sizes. for three-conductor cables, the minimum recommended installation temperature is minus 10ºCMaximum voltage rating for all intended applications is 300 voltsManufactured using annealed (soft) copper conductors - compressed stranding for the stranded conductors; a PVC insulation and a nylon jacket for the phase conductorsSunlight-, moisture-, and fungus-resistant PVC jacket surrounds overall constructionConsult the Canadian Electrical Code (CEC) for further information related to applicationsPrice, availability and Gauge size will vary by location, please contact your local Lowe's store for detailsShould any Southwire product prove defective due to manufacture within one year from date of invoice, upon written notice to Southwire, this material will be replaced F.O.B. original destination pointSouthwire will not be liable for any installation costs, incidental or consequential damages or costs, or loss of profits resulting from manufacturing defects-Cable Length(cm)
2987.04
Cable Length(ft)
98
Jacket Color
Black
Jacket Material
Polyvinyl chloride
Maximum Amperage
30
Moisture Resistant
Yes
Number of Pairs
1
RoHs Compliant
Yes
Safety Listing
CSA safety listing
Series Name
N/A
Shielded
No
Stranded or Solid
Stranded
Sub-Brand
N/A
Commercial/Residential
Commercial/Residential
Conductor(s)
2
Conduit Compatible
No
Direct Burial
Yes
File/Certification Number
CSA C22.2 No. 48 (non-metallic sheathed cable)
Fire Resistant
No
Ground Wire
Yes
Use Location
Outdoor
UV Resistant
No
Voltage Rating
300
Wire Gauge
14
Wire Cut Type
By-the-roll
