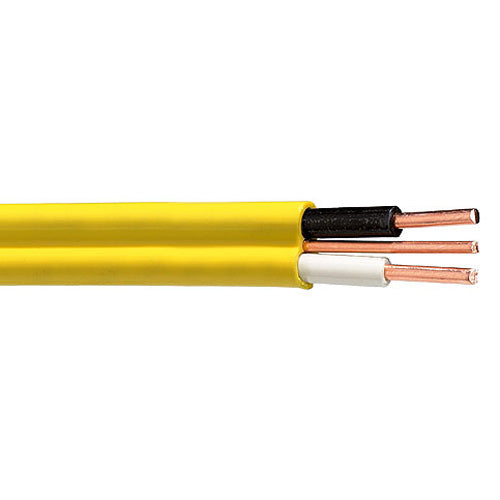

Southwire Romex Simpull Electric Cable NMD90 12-2 Gauge 75-m Coil Yellow-Roll

This Southwire Romex SIMpull 2-conductor cable with a bare grounding conductor may be used for both exposed work in dry locations or concealed work in dry or damp locations for general residential wiring. The cable is manufactured using annealed copper conductors in a PVC/nylon insulation with a a PVC jacket for the overall construction. The conductors feature SIM technology jacket which reduces the coefficient of friction. This cable meets or exceeds ASTM, CSA C22.2 No. 48 and Canadian Electrical Code requirements and is covered by a 1-year limited warranty.

Romex® SIMpull® NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locationsThe maximum allowable conductor temperature is 90°CThe minimum recommended installation temperature is minus 25° C for two-conductor cables, and minus 10°C for three-conductor cablesMaterial should be properly stored above 0°C for 24 hours prior to installationThe maximum voltage rating for all intended applications is 300 Volts-Number of Pairs
1
RoHs Compliant
Yes
Safety Listing
CSA safety listing
Series Name
N/A
Shielded
No
Stranded or Solid
Solid
Sub-Brand
N/A
Use Location
Indoor
UV Resistant
No
Voltage Rating
600
Warranty
1-year limited
Wire Gauge
12
Wire Cut Type
By-the-meter
Cable Length(cm)
7498.08
Cable Length(ft)
246
Commercial/Residential
Residential
Conductor(s)
2
Conduit Compatible
No
Direct Burial
No
File/Certification Number
CSA 22.2 No.48
Fire Resistant
No
Ground Wire
Yes
Jacket Color
Yellow
Jacket Material
Polyvinyl chloride
Maximum Amperage
20
Moisture Resistant
No
