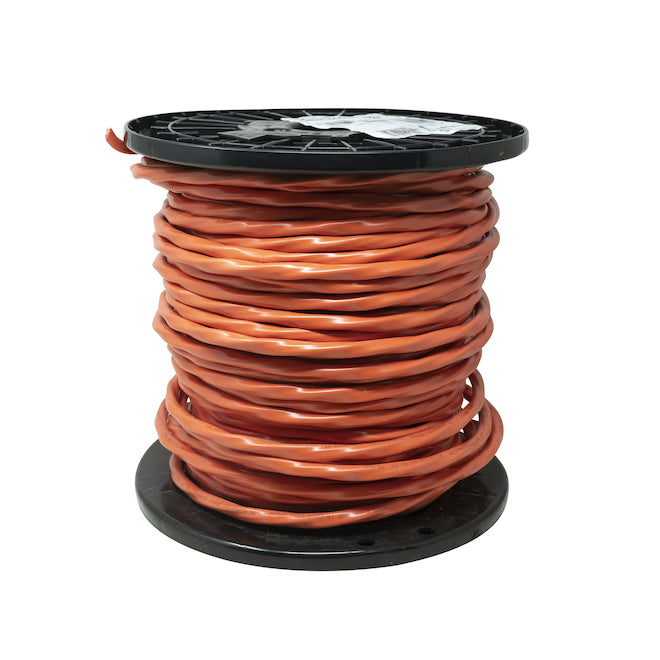

Southwire Romex Simpull Orange Jacketed NMD90 10 Gauge 3-Conductor Copper Electric Cable - 75-m Spool-Roll

This Southwire Romex SIMpull 3-conductor cable with a bare grounding conductor may be used for both exposed work in dry locations or concealed work in dry or damp locations for general residential wiring. The cable is manufactured using annealed copper conductors in a PVC/nylon insulation with a a PVC jacket for the overall construction. The conductors feature SIM technology jacket which reduces the coefficient of friction. This cable meets or exceeds ASTM, CSA C22.2 No. 48 and Canadian Electrical Code requirements and is covered by a 1-year limited warranty.

Southwire's Romex SIMpull NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locationsNMD90 is intended for use in Canada in accordance with the Canadian Electrical CodeMaximum allowable conductor temperature is 90ºC and the minimum recommended installation temperature is -10ºC for 3-conductor cables( with suitable handling procedures)Material should be properly stored above 0ºC for 24 hours prior to installationSouthwire's No lube SIM technology has revolutionized the way wire is pulled without any lubricant, saving contractors both time and money-Jacket Color
Orange
Jacket Material
Polyvinyl chloride
Maximum Amperage
40
Moisture Resistant
No
Number of Pairs
1
RoHs Compliant
Yes
Safety Listing
CSA safety listing
Series Name
N/A
Shielded
No
Stranded or Solid
Stranded
Sub-Brand
N/A
Use Location
Outdoor
UV Resistant
No
Voltage Rating
300
Warranty
1-year limited
Wire Gauge
10
Wire Cut Type
By-the-roll
Cable Length(cm)
7498.08
Cable Length(ft)
246
Commercial/Residential
Commercial/Residential
Conductor(s)
3
Conduit Compatible
No
Direct Burial
No
File/Certification Number
CSA C22.2 No. 48 (non-metallic sheathed cable)
Fire Resistant
No
Ground Wire
Yes
