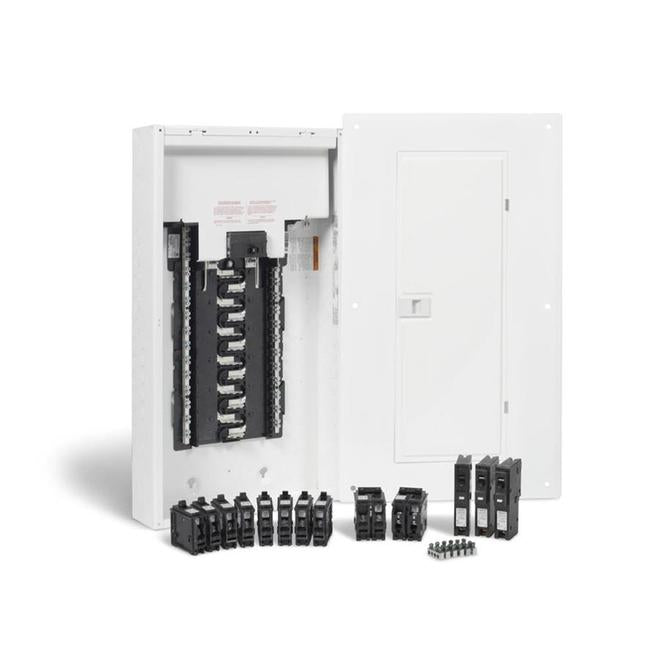

Square D 48-Circuit 24-Space 100 Amp Main Breaker Load Center (Value Pack)-Each

This plug-on neutral electrical panel package by Homeline® combines a service entrance load centre with a selection of breakers. Easy installation. CSA approved. Breakers included: 6x 1Pole 15A, 2x 1Pole 20A, 1x 2Pole 30A, 1x 2Pole 40A, 3x 1Pole combination arc fault. This product is covered by a 10-year warranty on housing and lifetime on branch circuit breakers for residential installations.

Breakers included: 6 - 1 pole 15 Amp, 2 - 1 pole 20 Amp, 1 - 2 pole 30 Amp, 1 - 2 pole 40 Amp, 3 - 1 pole Combination Arc FaultUse space saver breakers to expand loadcentre capacityDistributed neutral with backed out screws reduces clutter and simplifies wiringSuitable for aluminum or copper conductorsIncludes latch door on the coverCSA approved for vertical, horizontal or inverted mountingMultiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire-Amperage
100
Brand/Model Compatibility
Fits most
Buss Bar Construction
Aluminum
Circuits
48
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
No
Ground Bar Installed
No
Height(cm)
66.1416
Height(in)
26.04
Height(mm)
661.416
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
24
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
Yes
Value Pack Contents
Breakers Included: 6 - 1Pole 15A, 2 - 1Pole 20A, 1 - 2Pole 30A, 1 - 2Pole 40A, 3 - 1Pole Combination Arc Fault
Width(cm)
36.195
Width(in)
14.25
Width(mm)
361.95
