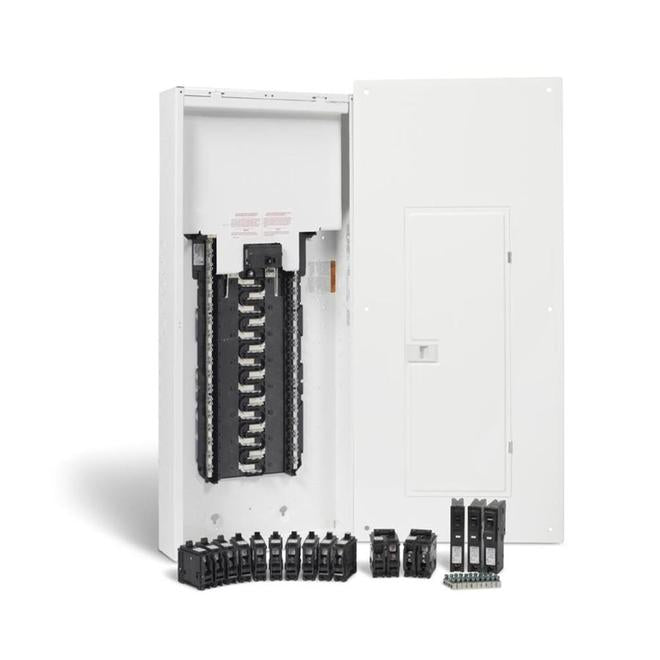

Square D 60-Circuit 30-Space 100 Amp Main Breaker Load Center (Value Pack)-Each

Breakers included: 8 - 1 pole 15 Amp, 2 - 1 pole 20 Amp, 1 - 2 pole 30 Amp, 1 - 2 pole 40 Amp, 3 - 1 pole Combination Arc FaultExpand the loadcentre capacity with the use of space saver breakersDistributed neutral with backed out screws reduces clutter and simplifies wiringSuitable for aluminum or copper conductorsIncludes latch door on the coverCSA approved for vertical, horizontal or inverted mountingMultiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire-Amperage
100
Brand/Model Compatibility
Fits most
Buss Bar Construction
Aluminum
Circuits
60
Cover Included
Yes
Depth(cm)
9.525
Depth(in)
3.75
Depth(mm)
95.25
Feed-Through Lugs
No
Ground Bar Installed
No
Height(cm)
85.8012
Height(in)
33.78
Height(mm)
858.012
Manufacturer Color/Finish
White
Mounting Type
Combination
Number of Spaces
30
Orientation
Over/Under
Paintable
Yes
Phase Type
Single phase (120/240)
Plug-On Neutral
Yes
Series Name
N/A
Use Location
Indoor
Value Pack
Yes
Value Pack Contents
Breakers Included: 8 - 1Pole 15A, 2 - 1Pole 20A, 1 - 2Pole 30A, 1 - 2Pole 40A, 3 - 1Pole Combination Arc Fault
Width(cm)
36.195
Width(in)
14.25
Width(mm)
361.95
