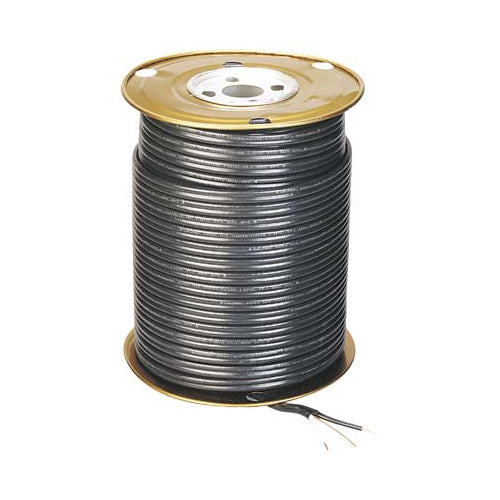

Wire - NMWU Building Wire-Roll

NMWU building wire. 246 ft. (75 m) spool, 15 A. 300 V. 14/2 GA. For direct burial wiring or exposed to weather. For fixture, outlet, shed and garden. Black. Also available in 98 ft. (30 m).

Southwire will not be liable for any installation costs, incidental or consequential damages or costs, or loss of profits resulting from manufacturing defectsUsed for underground installations, including direct burial, at conductor temperatures not exceeding 60ºC and for wet and corrosive locations such as wet basementsThe minimum recommended installation temperature is minus 40ºC for two-conductor cables (sizes AWG 14 through AWG 6) and minus 25ºC for all other sizes. for three-conductor cables, the minimum recommended installation temperature is minus 10ºCMaximum voltage rating for all intended applications is 300 voltsManufactured using annealed (soft) copper conductors - compressed stranding for the stranded conductors; a PVC insulation and a nylon jacket for the phase conductorsSunlight-, moisture-, and fungus-resistant PVC jacket surrounds overall constructionConsult the Canadian Electrical Code (CEC) for further information related to applicationsPrice, availability and Gauge size will vary by location, please contact your local Lowe's store for detailsShould any Southwire product prove defective due to manufacture within one year from date of invoice, upon written notice to Southwire, this material will be replaced F.O.B. original destination point-Wire Cut Type
By-the-roll
Conductor(s)
2
Ground Wire
Yes
Jacket Color
Black
Jacket Material
Polyvinyl chloride
Number of Pairs
1
Series Name
N/A
Sub-Brand
N/A
